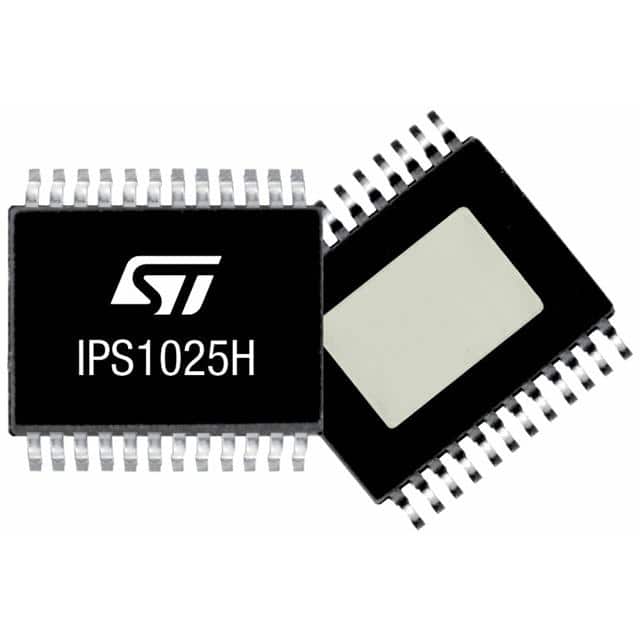

IPS1025HFTR
HIGH EFFICIENCY, HIGH-SIDE SWITCManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
STMicroelectronics IPS1025HFTR is a high-efficiency, high-side power switch designed for demanding applications. This N-Channel device, housed in a 24-PowerBSOP package, offers robust protection features including fixed current limiting, over-temperature, over-voltage, short-circuit, and undervoltage lockout (UVLO). With a low on-resistance of 12mOhm (typical), it minimizes power dissipation. The device operates from a wide supply voltage range of 8.65V to 60V and features a simple ON/OFF interface. Its high-side output configuration and extensive fault protection make it suitable for automotive, industrial automation, and power management systems. The IPS1025HFTR is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8.65V ~ 60V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO |
