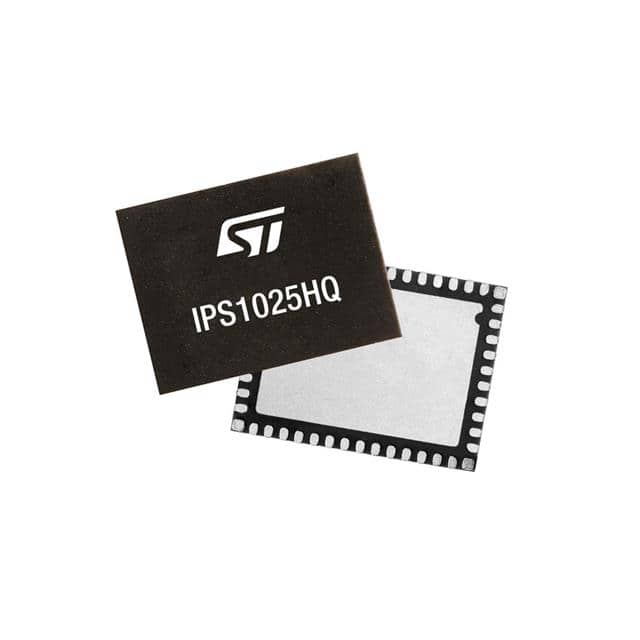

IPS1025HFQ
HIGH EFFICIENCY, HIGH-SIDE SWITCManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The STMicroelectronics IPS1025HFQ is a high-efficiency, high-side power switch designed for robust power distribution. This N-channel MOSFET driver features a 1:1 ratio, capable of delivering up to 2.4A continuous output current. It offers comprehensive fault protection including fixed current limiting, overload, over-temperature protection, and undervoltage lockout (UVLO). The device operates with a load voltage range from 8.65V to 60V. Its low on-resistance (Rds On) is typically 12mOhm. The IPS1025HFQ utilizes a logic interface and is housed in a 48-VFQFN exposed pad package, suitable for surface mounting. This component finds application in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 8.65V ~ 60V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 48-QFN (8x6) |
| Fault Protection | Current Limiting (Fixed), Over Load, Over Temperature, UVLO |
