IPS1025H
LINEAR IC'SManufacturer: STMicroelectronics
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

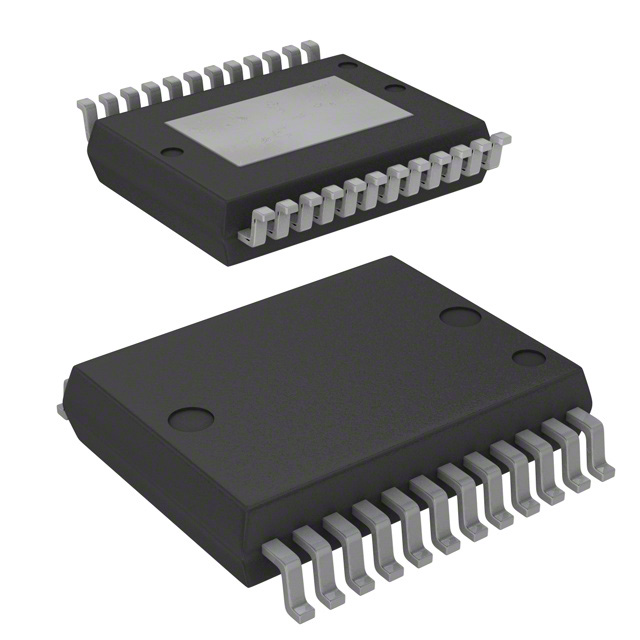

STMicroelectronics' IPS1025H is a high-side power switch featuring a 1:1 N-Channel MOSFET configuration, designed for demanding power distribution applications. This device offers robust protection capabilities including adjustable current limiting, open load detection, over-temperature protection, reverse current protection, and undervoltage lockout (UVLO). With a maximum continuous output current of 5A and a low on-resistance of 12mOhm (typical), it ensures efficient power delivery.
The IPS1025H operates over a wide supply voltage range of 8V to 60V and can handle junction temperatures from -40°C to 150°C. Its logic-level input interface simplifies integration into control systems. Packaged in a 24-PowerBSOP (PowerSSO-24) for surface mounting, this general-purpose switch is suitable for automotive, industrial, and high-reliability electronic systems requiring precise load management and fault tolerance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Logic |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | High Side |
| Rds On (Typ) | 12mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 60V |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO |
