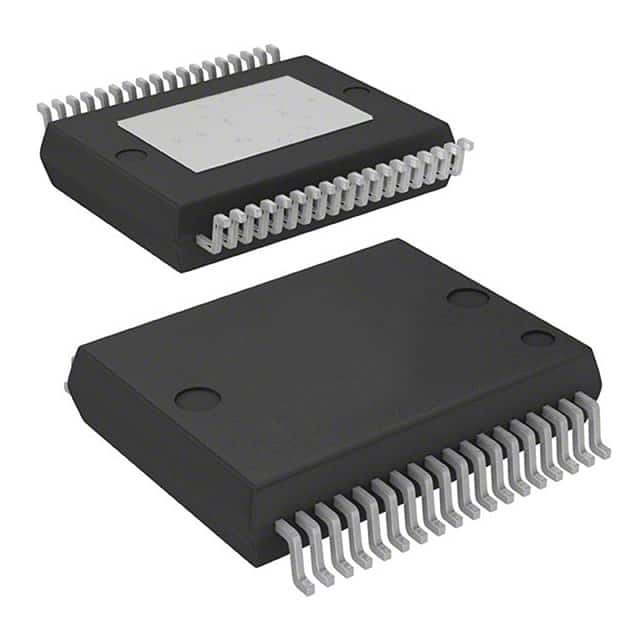

VNHD7012AYTR
IC MOTOR DRVR 4V-28V 36POWERSSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics VIPOWER™ VNHD7012AYTR is a high-side motor driver featuring a CMOS and Power MOSFET technology. This automotive-grade component, qualified to AEC-Q100 standards, is designed for brushed DC motor control. Delivering up to 38A of output current, it operates within a 4V to 28V voltage range for both load and supply. The device utilizes PWM interfacing and is housed in a 36-PowerFSOP package (36-PowerSSO), suitable for surface mounting. Its robust design supports an operating temperature range of -40°C to 150°C (TJ). The VNHD7012AYTR is ideal for demanding automotive applications requiring efficient motor drive management.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 38A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | CMOS, Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | PowerSSO-36 |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
