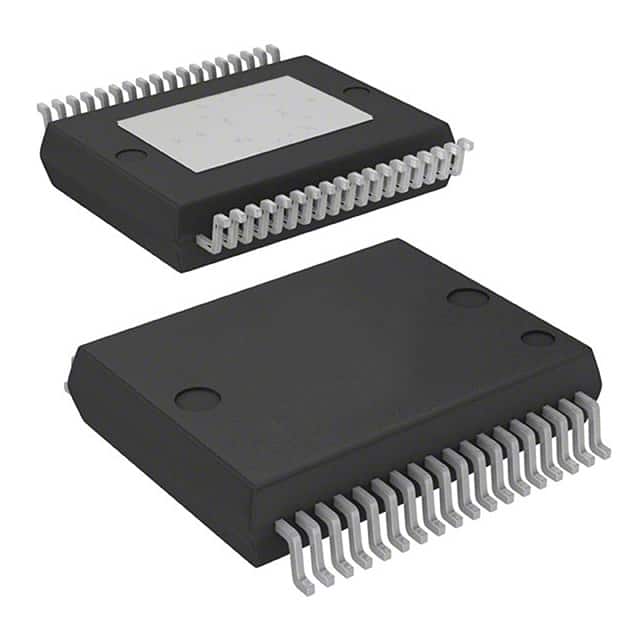

VNHD7012AY
IC MOTOR DRIVER 36POWERSSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics VNHD7012AY is a high-side intelligent motor driver featuring four independent half-bridge channels. This PowerSSO-36 packaged device utilizes advanced CMOS and Power MOSFET technology for efficient brushed DC motor control. Designed for automotive applications, it operates within a voltage range of 4V to 28V for both supply and load. The VNHD7012AY offers a robust 38A output current capability and supports PWM interfacing for precise speed control. Its ECOPACK®, VIPower™ series designation highlights its high-performance capabilities. Typical applications include automotive body control modules and advanced driver-assistance systems.
Additional Information
Series: ECOPACK®, VIPower™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | 38A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | CMOS, Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | PowerSSO-36 |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
Request a Quote
Clients Also Buy
VNH5050A-E
IC MTR DRVR 5.5V-18V 36POWERSSO
VNH5180A-E
IC MTR DRVR 5.5V-18V 36POWERSSO

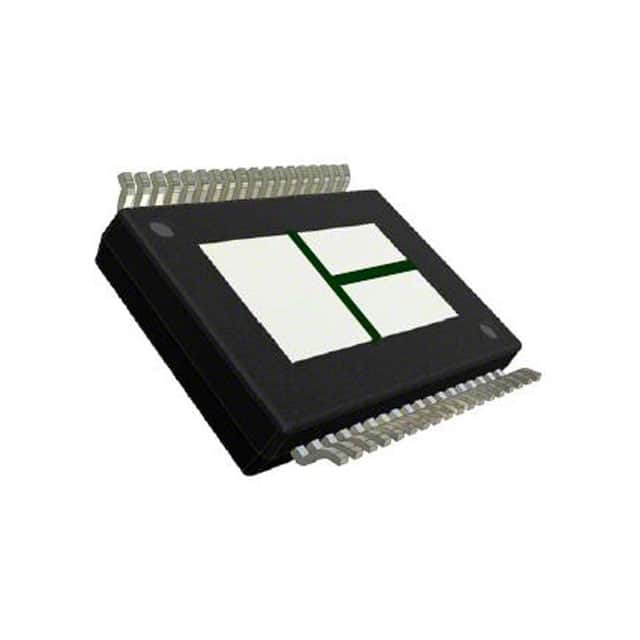

VNH5180ATR-E
