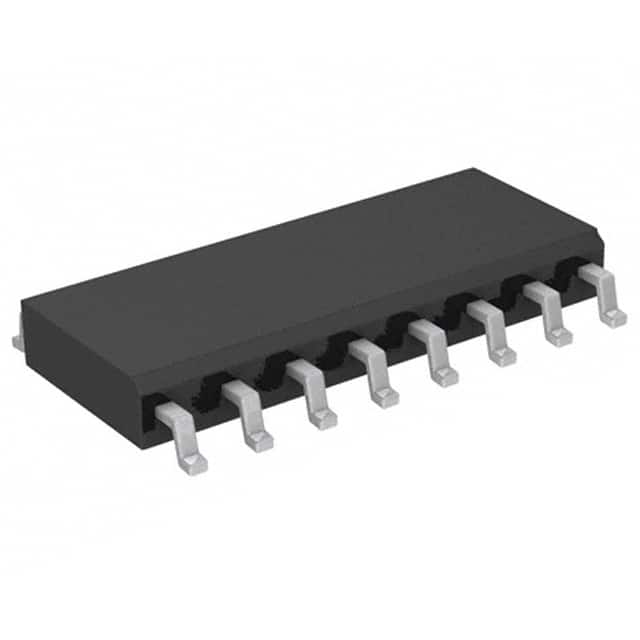

VNH7100BASTR
IC MOTOR DRIVER 4V-28V 16SOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics VNH7100BASTR is a high-side motor driver within the VIPOWER™ series, featuring a fully integrated control and power stage. This device is a Power MOSFET based solution designed for brushed DC motor control applications. It provides a robust output configuration with two half-bridges, capable of delivering up to 15A of continuous output current. Key specifications include an operating voltage range of 4V to 28V for both supply and load. The VNH7100BASTR supports PWM interface for precise motor speed control. Its 16-SOIC (0.154", 3.90mm Width) surface mount package facilitates efficient board design. Qualified to AEC-Q100 and rated for automotive applications, this component is engineered for reliable operation across a wide temperature range of -40°C to 150°C (TJ). It is supplied on tape and reel (TR).
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 15A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | 16-SO |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
