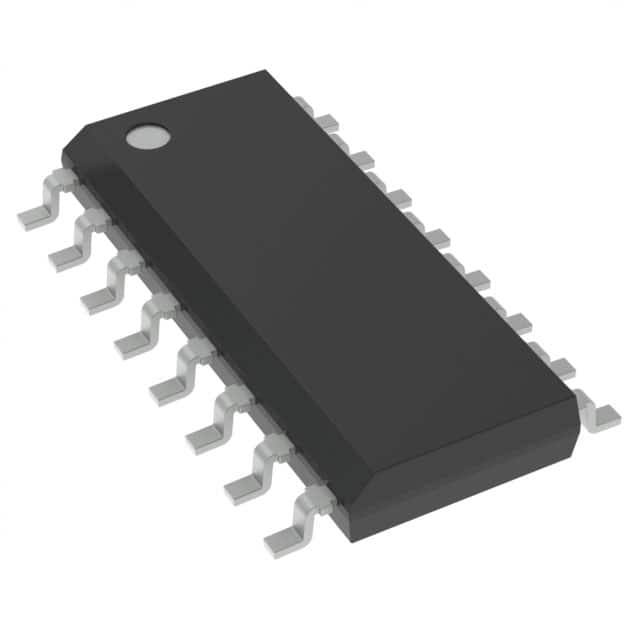

VNH7070BASTR
IC MOTOR DRIVER 4V-28V 16SOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics VNH7070BASTR is a fully integrated motor driver featuring a Power MOSFET technology. This VIPOWER™ series component provides a robust solution for controlling brushed DC motors, offering a half-bridge output configuration. It operates within a voltage range of 4V to 28V, both for the load and the supply. Designed for demanding applications, this device boasts a high output current capability of 15A. The interface supports Pulse Width Modulation (PWM) for precise motor control.
The VNH7070BASTR is qualified to AEC-Q100 standards, making it suitable for automotive applications. Its 16-SOIC (0.154", 3.90mm Width) package is designed for surface mounting, and it is supplied in Tape & Reel (TR) packaging. The operating temperature range is -40°C to 150°C (TJ). This component is a key element in automotive power systems and industrial automation.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 15A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | 16-SO |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
