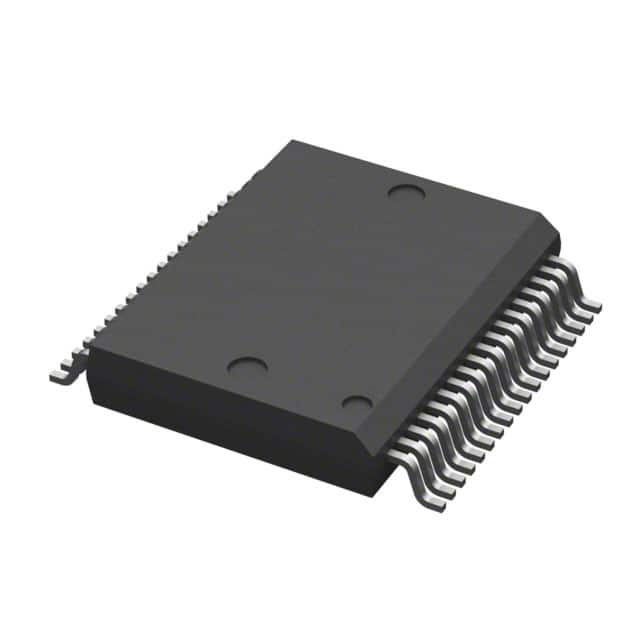

VNH7070AYTR
AUTOMOTIVE FULLY INTEGRATED H-BRManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics' VNH7070AYTR is an automotive-grade, fully integrated H-bridge motor driver. This device integrates control and power stages, featuring a Power MOSFET technology for efficient operation. Designed for brushed DC motors, it supports PWM interfacing for precise control. The VNH7070AYTR boasts a high continuous output current of 20A and operates within a supply voltage range of 4V to 28V. Its output is configured as two half-bridges, housed in a 36-PowerBFSOP (PowerSSO-36 TP) surface-mount package. Qualified to AEC-Q100 standards, it is suitable for demanding automotive applications. The operating temperature range is -40°C to 150°C (TJ). This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 20A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | PowerSSO-36 TP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
