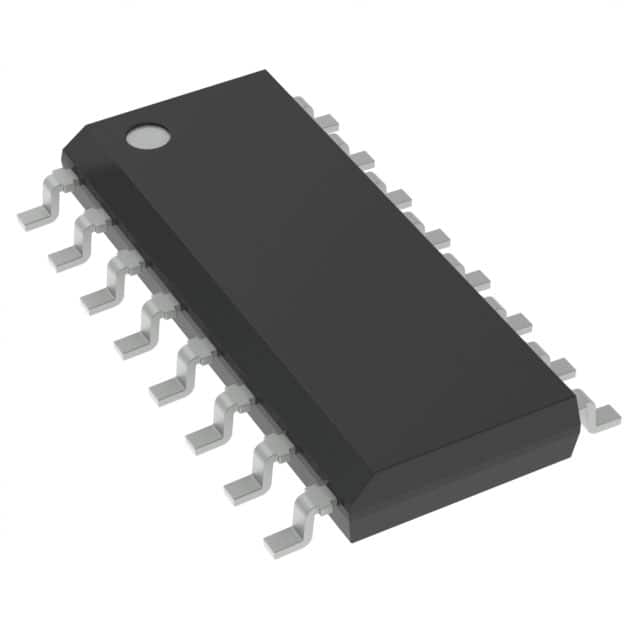

VNH7070ASTR
IC MOTOR DRIVER 4V-28V 16SOICManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics VNH7070ASTR is a high-side motor driver featuring a fully integrated control and power stage. This VIPOWER™ series component utilizes Power MOSFET technology to deliver robust performance for brushed DC motor applications. With a load and supply voltage range of 4V to 28V and an output current capability of 15A, it is suitable for demanding automotive applications. The device offers PWM interface for precise control and is packaged in a 16-SOIC (0.154", 3.90mm Width) surface-mount case. Its half-bridge output configuration and operation in automotive environments, qualified to AEC-Q100 standards, make it a reliable choice for power electronics design. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 15A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | 16-SO |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
