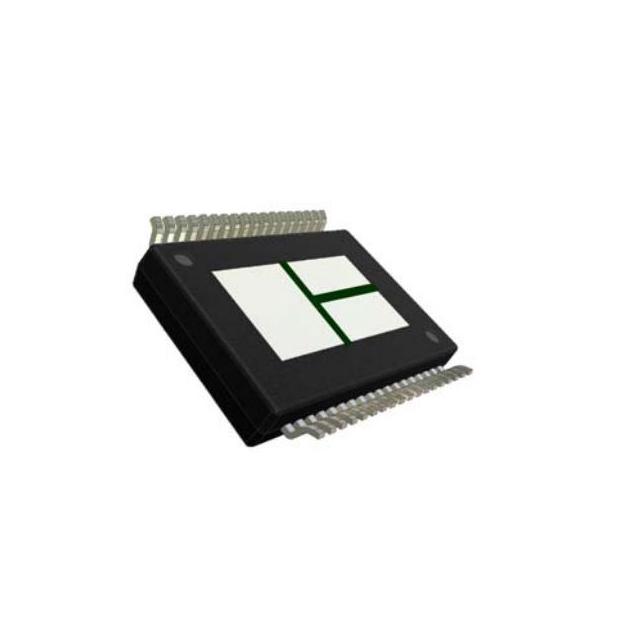

VNH7040AYTR
IC MOTOR DRVR 4V-28V 36POWERSSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics VNH7040AYTR is a high-side motor driver featuring a fully integrated control and power stage. This VIPOWER™ series device utilizes Power MOSFET technology and is designed for brushed DC motor control. It offers a robust 35A output current and operates within a 4V to 28V load and supply voltage range. The VNH7040AYTR supports PWM interface for precise motor speed control and is configured as a half-bridge driver. Its PowerSSO-36 TP package, a 36-PowerBFSOP (0.295", 7.50mm Width), is suitable for surface mounting. Qualified to AEC-Q100 and rated for an automotive grade, this component is engineered for demanding automotive applications. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 35A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4V ~ 28V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | PowerSSO-36 TP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
