L99MH98-TR
OCTAL HALF-BRIDGE PRE-DRIVERManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More

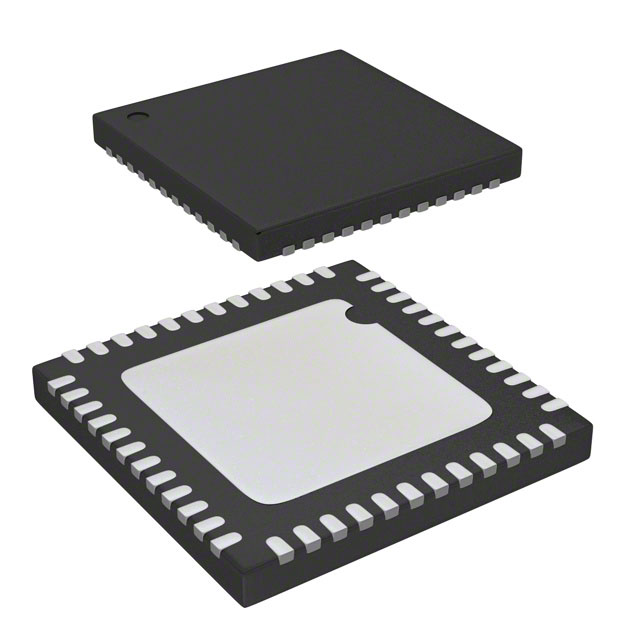

The STMicroelectronics L99MH98-TR is an octal half-bridge pre-driver designed for demanding automotive applications. This bipolar motor driver utilizes NMOS technology and features an SPI interface for streamlined control. The L99MH98-TR is engineered with 8 half-bridge outputs, making it suitable for driving brushed DC motors and bipolar stepper motors. Its robust design operates across a temperature range of -40°C to 150°C (TJ) and is AEC-Q100 qualified. The component's 48-VFQFPN (7x7) package with an exposed pad ensures efficient thermal management for surface mount applications. This device is commonly found in general-purpose automotive systems requiring precise motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Current Management |
| Current - Output | 120mA |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (8) |
| Voltage - Supply | 6V ~ 28V |
| Applications | General Purpose |
| Technology | NMOS |
| Voltage - Load | - |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
