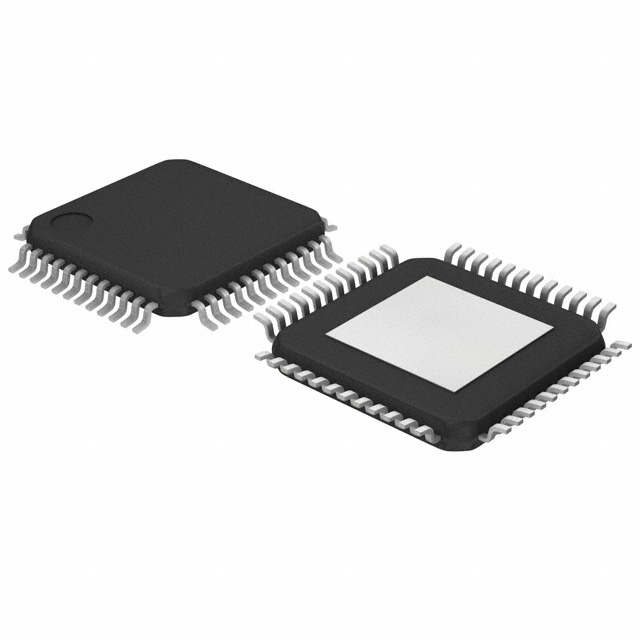

L99ASC03TR
IC MOTOR DRIVER 6V-28V 48TQFPManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics L99ASC03TR is a high-performance motor driver designed for automotive applications. This device features an SPI interface for seamless integration and control. It is specifically engineered as a pre-driver for three half-bridge configurations, making it ideal for Brushless DC (BLDC) motor control. The L99ASC03TR operates within a supply voltage range of 6V to 28V and supports a junction temperature range of -40°C to 150°C. Housed in a 48-TQFP-EP (7x7) package, this surface-mount component offers robust commutation and direction management capabilities. Its advanced functionality is well-suited for demanding automotive systems requiring precise motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 28V |
| Applications | - |
| Technology | - |
| Voltage - Load | - |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
