L9958XPTR

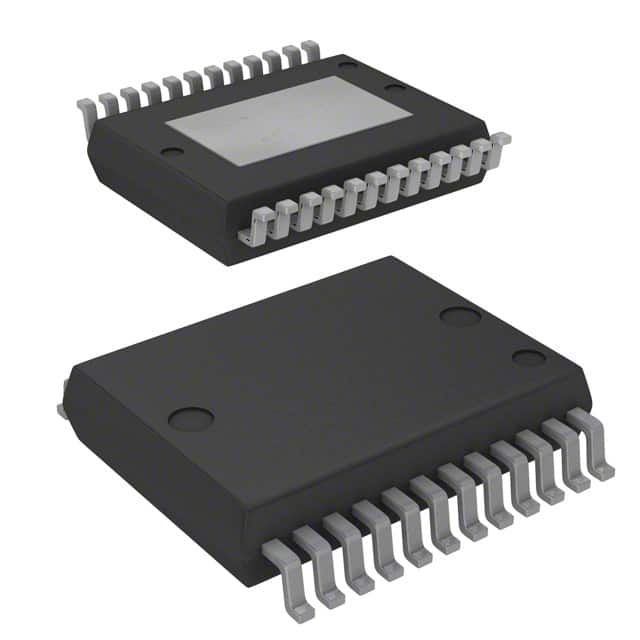

IC MOTOR DRVR BIPOLAR 24POWERSSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L9958XPTR is a bipolar stepper motor driver designed for precise motor control applications. This CMOS device features a fully integrated control and power stage, enabling efficient operation of bipolar stepper motors. With a robust design, it supports a load voltage range of 4V to 28V and a supply voltage of 4.5V to 5.5V. The L9958XPTR delivers an impressive output current of up to 8.6A, facilitating high-performance motor driving. Its interface is SPI, allowing for straightforward communication and control. The output configuration includes two half-bridges, providing flexibility in motor winding management. Packaged in a PowerSSO-24 format suitable for surface mounting, this component is ideal for applications in the automotive and industrial automation sectors. The L9958XPTR operates reliably across an extended temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 8.6A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | General Purpose |
| Technology | CMOS |
| Voltage - Load | 4V ~ 28V |
| Supplier Device Package | PowerSSO-24 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
