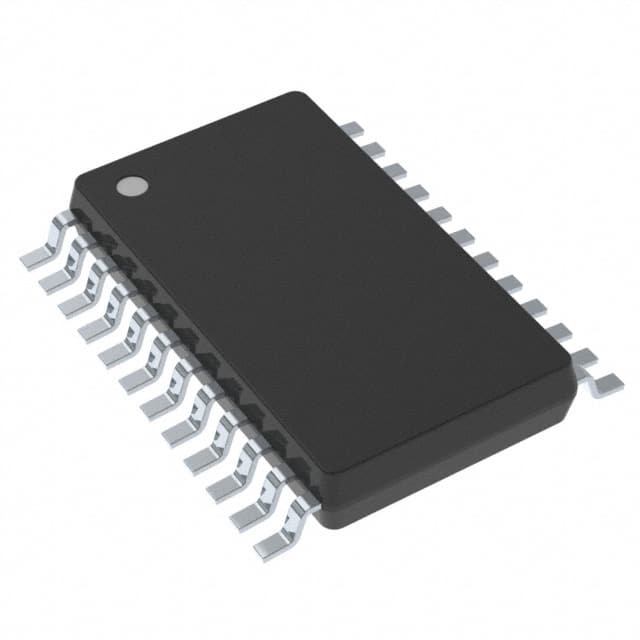

L9942XP1
IC MTR DRV BIPLR 3-5.3V 24PWRSSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver DMOS SPI PowerSSO-24
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.3A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 3V ~ 5.3V |
| Applications | - |
| Technology | DMOS |
| Voltage - Load | 7V ~ 20V |
| Supplier Device Package | PowerSSO-24 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/8, 1/16, 1/32 |
| Grade | Automotive |
Request a Quote
