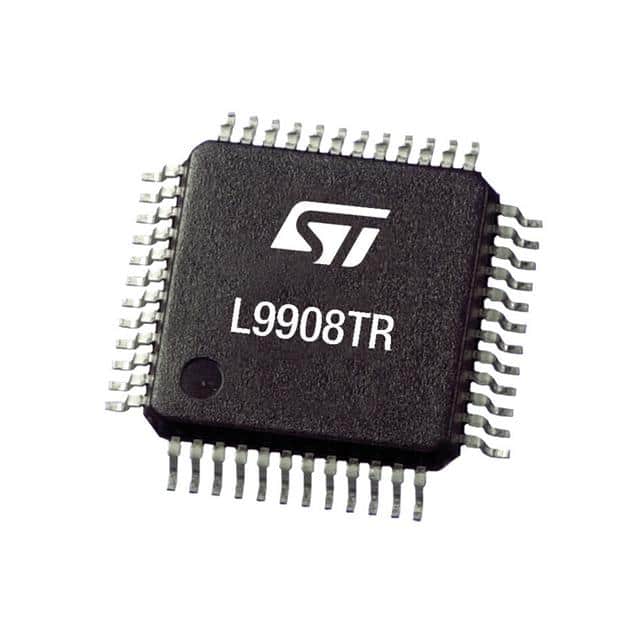

L9908TR
AUTOMOTIVE 3-PHASE MOTOR GATE DRManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics L9908TR is a multiphase motor driver featuring a fully integrated control and power stage, designed for demanding automotive applications. This component utilizes IGBT technology and offers a half-bridge output configuration for three phases, making it suitable for controlling Brushless DC (BLDC) and multiphase stepper motors. The interface includes PWM for control and SPI for configuration, enabling precise motor operation. Packaged in a 48-TQFP Exposed Pad (7x7) and supplied on tape and reel, the L9908TR operates across a wide temperature range of -40°C to 150°C. Its robust design supports load and supply voltages from 4.5V to 75V. This driver is commonly employed in automotive powertrain and chassis control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | - |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 4.5V ~ 75V |
| Applications | - |
| Technology | IGBT |
| Voltage - Load | 4.5V ~ 75V |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
