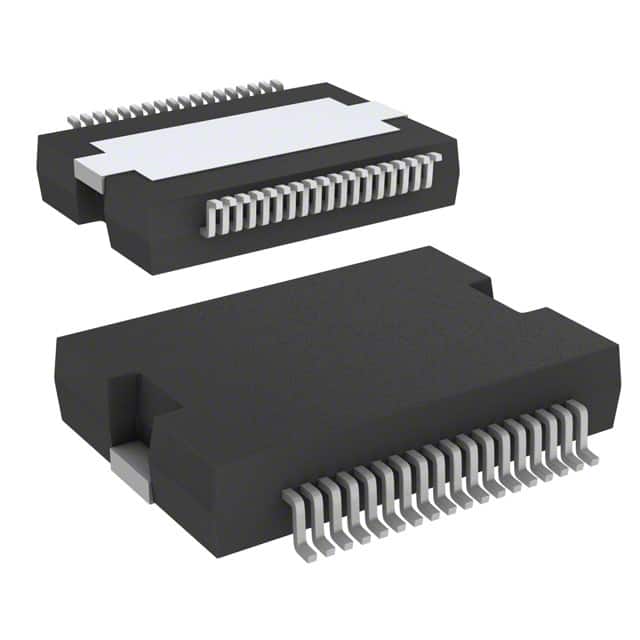

L6235PD013TR
IC MOTOR DRVR 12V-52V 36POWERSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics STSPIN L62 L6235PD013TR is a fully integrated DMOS motor driver IC designed for controlling Brushless DC (BLDC) motors. This device integrates both control logic and a power stage, simplifying system design. It features a parallel interface and a robust output configuration of three half-bridges, capable of delivering up to 2.8A per channel. The voltage range for both load and supply is 12V to 52V. Packaged in a 36-PowerBSSOP (PowerSO-36 Slug Up) for surface mounting, this component operates efficiently across a temperature range of -25°C to 125°C. Its versatile capabilities make it suitable for general-purpose applications across various industries, including industrial automation and consumer electronics. The L6235PD013TR is supplied on tape and reel.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.8A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 12V ~ 52V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 12V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
