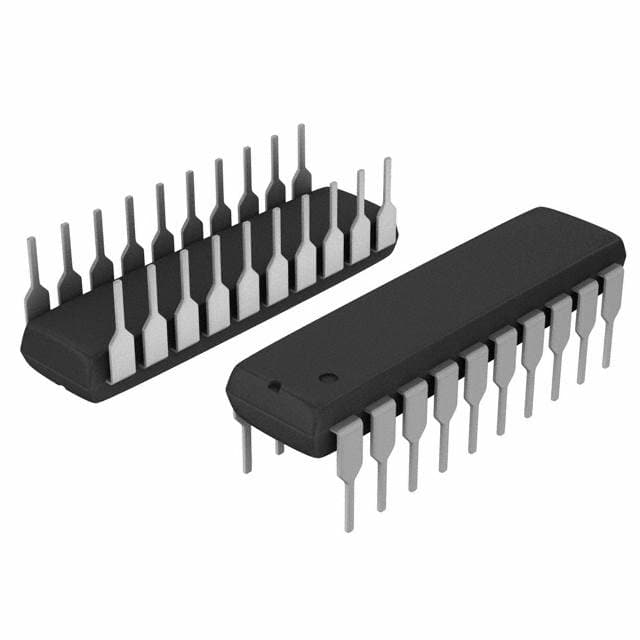

L6234
IC MOTOR DRIVER 7V-52V 20-PWRDIPManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L6234 is a monolithic integrated circuit designed for driving bipolar stepper motors and brushless DC motors. This BiCDMOS parallel motor driver, part of the STSPIN L62 series, offers a fully integrated control and power stage. It operates with a load and supply voltage range of 7V to 52V and delivers a continuous output current of up to 2.8A. The L6234 features three half-bridge output configurations, enabling versatile motor control. Its 20-PowerDIP package with through-hole mounting is suitable for applications requiring robust thermal performance. Widely utilized in industrial automation and consumer electronics, this component provides efficient and reliable motor driving capabilities.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.8A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 7V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 7V ~ 52V |
| Supplier Device Package | 20-PowerDIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
