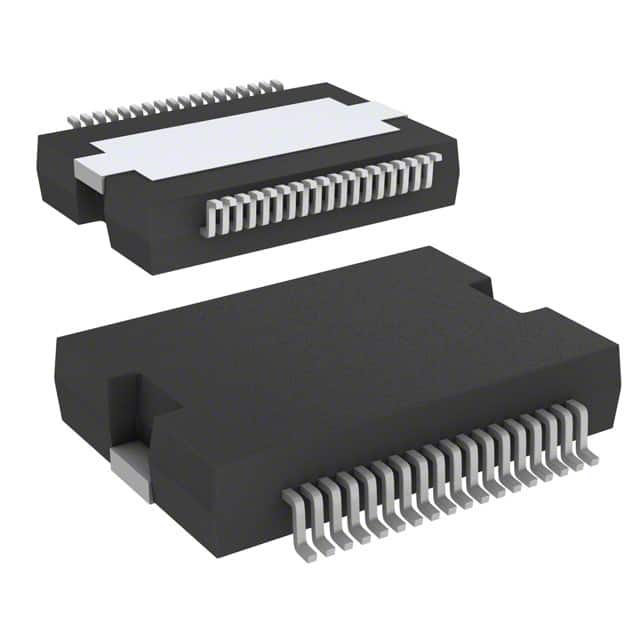

L6227PD
IC MTR DRV BIPOLAR 8-52V 36PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics L6227PD is a bipolar stepper motor driver IC from the STSPIN L62 series. This fully integrated device combines control and power stages, featuring DMOS technology for efficient operation. Designed for bipolar stepper motors, it offers a parallel interface and supports a voltage range of 8V to 52V for both supply and load. The L6227PD delivers a continuous output current of 1.4A, with four half-bridge output configurations. It is packaged in a PowerSO-36 Slug Up (36-PowerBSSOP) for surface mounting, suitable for operating temperatures between -25°C and 125°C. Applications include general-purpose motor control in industrial automation and consumer electronics.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.4A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
