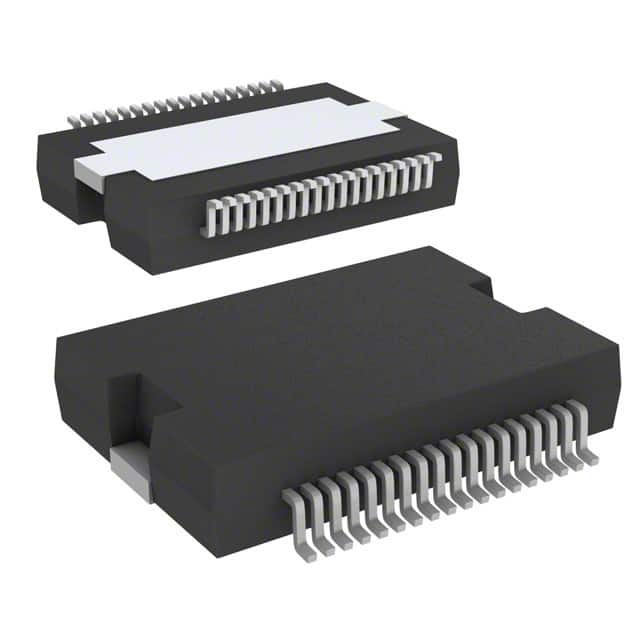

L6226PDTR
IC MTR DRV BIPOLAR 8-52V 36PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L6226PDTR, part of the STSPIN L62 series, is a fully integrated bipolar stepper motor driver designed for high-performance applications. This BiCDMOS device offers a robust solution for driving bipolar stepper motors across a voltage range of 8V to 52V, with a continuous output current capability of 1.4A. The L6226PDTR features a parallel interface and a half-bridge output configuration, enabling precise control of motor phase excitation. Its advanced internal circuitry integrates both control and power stages within a single package, simplifying system design. Packaged in a 36-PowerBSSOP (PowerSO-36 Slug Up) for surface mounting and supplied on tape and reel, this component is suitable for demanding industrial automation, robotics, and consumer electronics applications. The operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.4A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
