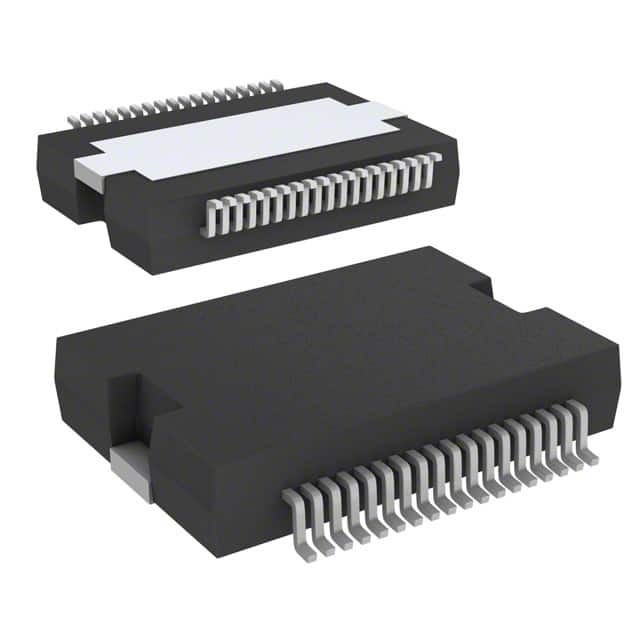

L6226PD
IC MTR DRV BIPOLAR 8-52V 36PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L6226PD is a bipolar stepper motor driver featuring a fully integrated control and power stage. This BiCDMOS device operates from 8V to 52V, supporting a continuous output current of 4A. The STSPIN L62 series component is designed for surface mounting within a 36-PowerBSSOP package, also known as PowerSO-36 Slug Up. Its parallel interface facilitates straightforward integration into system designs. The L6226PD provides four half-bridge output configurations, making it suitable for driving brushed DC and bipolar stepper motors. It is commonly utilized in applications within the industrial and automotive sectors. The operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
