L6225PD
IC MTR DRV BIPOLAR 8-52V 20PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More

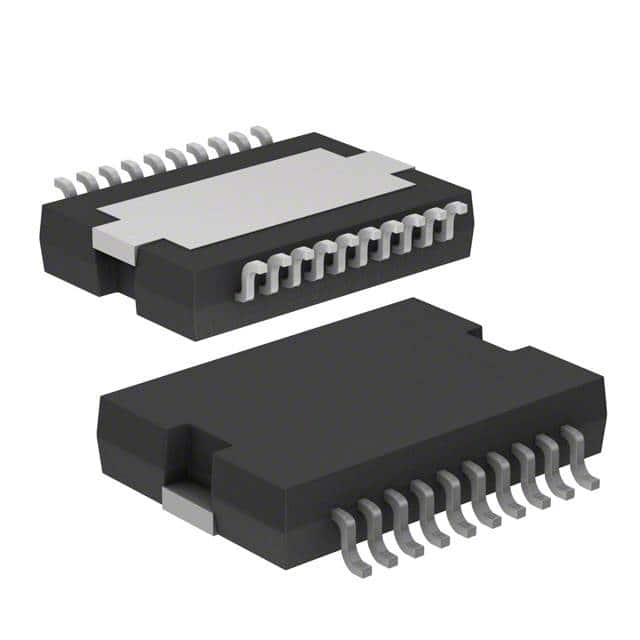

STMicroelectronics L6225PD is a bipolar stepper motor driver IC from the STSPIN L62 series. This fully integrated device combines control and power stages for driving bipolar stepper motors with load voltages ranging from 8V to 52V and a supply voltage of 8V to 52V. It features a parallel interface and a BiCDMOS technology for efficient operation. The output configuration includes four half-bridges, supporting a continuous output current of 4A. The component is supplied in a PowerSO-20 package, specifically a 20-SOIC with an exposed pad, suitable for surface mounting. The L6225PD is designed for general-purpose applications across various industries, including industrial automation and robotics, requiring precise motor control. Operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-20 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
