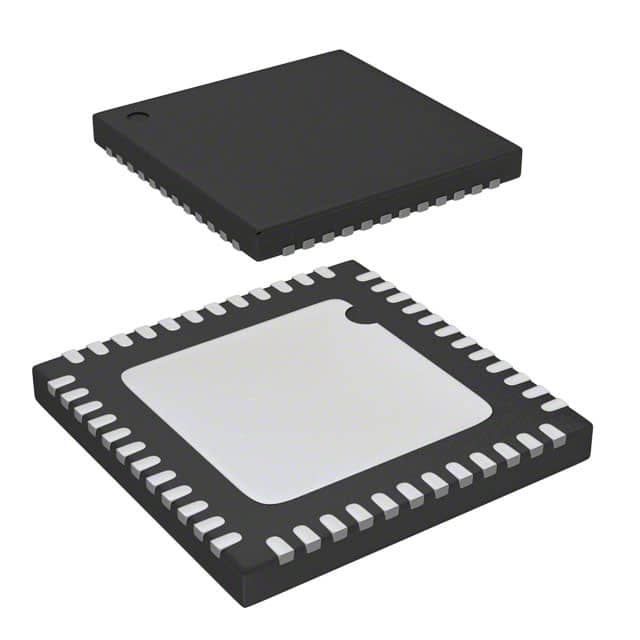

L6208QTR
IC MTR DRVR BIPOLAR 8-52V 48QFNManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L6208QTR is a fully integrated bipolar stepper motor driver from the STSPIN L62 series. This DMOS parallel driver features a control and power stage, enabling efficient operation for precision motion control applications. Designed for bipolar stepper motors, it offers a robust output current of 2.5A and operates within a voltage range of 8V to 52V. The L6208QTR supports step resolutions of full and half steps, providing flexibility in motor control algorithms. Its output configuration comprises four half-bridge drivers, facilitating versatile motor drive topologies. Packaged in a 48-QFN (7x7) with an exposed pad for enhanced thermal dissipation, this surface-mount component is suitable for demanding industrial environments, including automation and robotics. The device operates reliably across an ambient temperature range of -25°C to 125°C (TJ).
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.5A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-QFN (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
