L6208Q
IC MTR DRVR BIPOLAR 8-52V 48QFNManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More

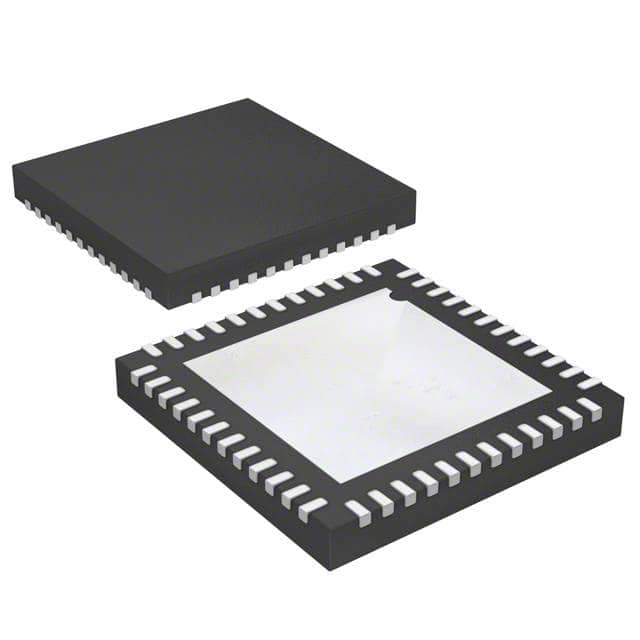

The STMicroelectronics STSPIN L62 L6208Q is a bipolar stepper motor driver featuring a DMOS parallel interface. This fully integrated component combines control and power stages for efficient operation. It supports step resolutions of 1 and 1/2, making it suitable for applications requiring precise motor control. The device operates with load and supply voltages ranging from 8V to 52V, with a continuous output current of 2.5A. Its output configuration includes four half-bridges. The L6208Q is housed in a 48-VFQFN exposed pad package, specifically a 7x7mm QFN, designed for surface mounting. This component finds application in general-purpose motor control across various industries, including industrial automation and consumer electronics.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.5A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-QFN (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
