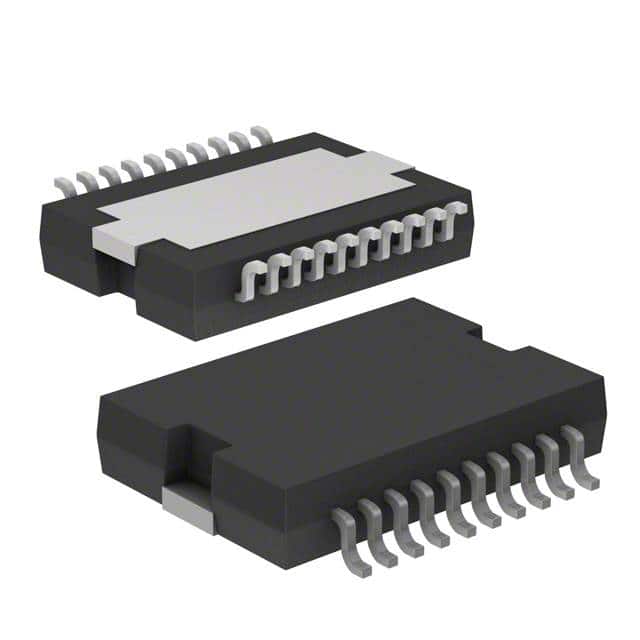

L6205PD013TR
IC MTR DRV BIPOLAR 8-52V 20PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics L6205PD013TR is a bipolar stepper motor driver from the STSPIN L62 series. This BiCDMOS integrated circuit features a parallel interface and is housed in a PowerSO-20 package, suitable for surface mounting. It offers a fully integrated control and power stage, capable of driving bipolar stepper motors and brushed DC motors across a load supply voltage range of 8V to 52V. The device provides a continuous output current of 2.8A per channel and utilizes a half-bridge output configuration with four such bridges. Operating within a junction temperature range of -25°C to 125°C, this component is engineered for applications requiring precise motor control in general-purpose use. The "TR" designation indicates it is supplied on tape and reel for automated assembly processes.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.8A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-20 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
