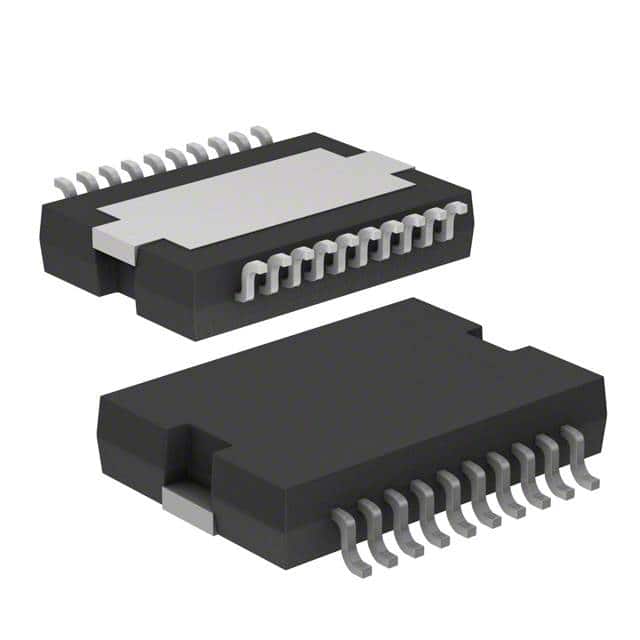

L6205PD
IC MTR DRV BIPOLAR 8-52V 20PWRSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics STSPIN L62 L6205PD is a bipolar stepper motor driver featuring a fully integrated control and power stage. This BiCDMOS device operates from an 8V to 52V supply and load voltage range, capable of delivering up to 2.8A output current. The L6205PD offers a parallel interface for motor control and is configured with four half-bridge outputs. It is housed in a 20-SOIC (PowerSO-20) package with an exposed pad for enhanced thermal management, suitable for surface mounting. Operating within a junction temperature range of -25°C to 125°C, this component finds application in general-purpose motor control across various industrial sectors.
Additional Information
Series: STSPIN L62RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.8A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-20 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
