E-L6258EXTR
IC MOTOR DRIVER BIPLR 36POWERSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More

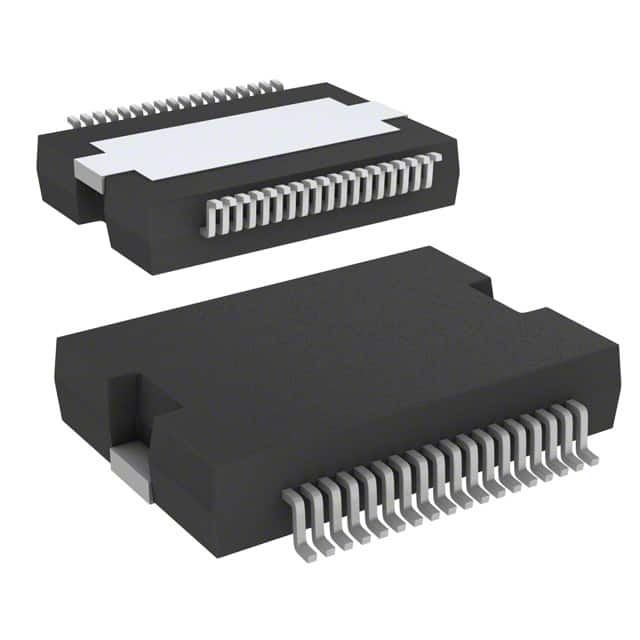

STMicroelectronics E-L6258EXTR is a bipolar stepper motor driver IC featuring DMOS technology. This fully integrated component combines control and power stages, operating from a 4.75V to 5.25V supply voltage to drive brushed DC and bipolar stepper motors. It provides 1.5A output current and supports step resolutions of 1, 1/2, 1/4, 1/8, and 1/16. The device offers four half-bridge outputs and interfaces via a parallel connection. Designed for demanding applications, it operates efficiently across a load voltage range of 12V to 40V. The E-L6258EXTR is housed in a 36-PowerBSSOP (0.433", 11.00mm Width) package, suitable for surface mounting. Its robust design allows for operation at junction temperatures up to 150°C. This component is commonly utilized in general-purpose applications across various industrial automation and robotics sectors. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 12V ~ 40V |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
