E-L6258EP

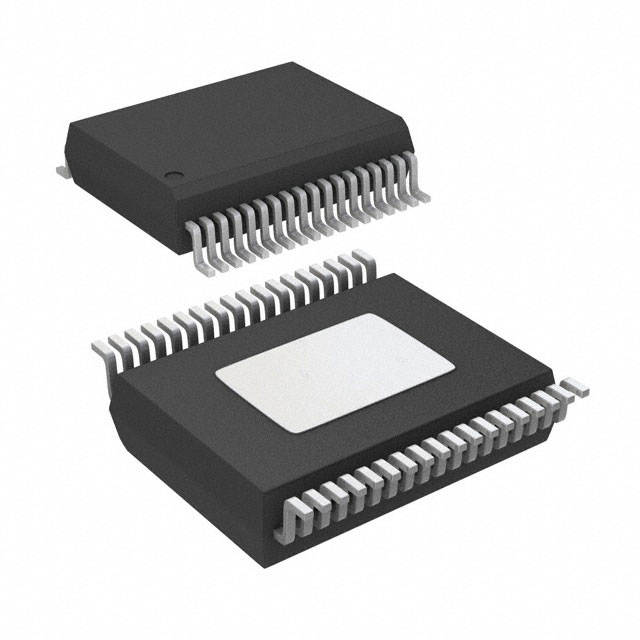

IC MOTOR DRVR BIPOLAR POWERSSO36Manufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics E-L6258EP is a bipolar stepper motor driver featuring DMOS technology in a PowerSSO-36 EPD package. This fully integrated component combines control and power stages for driving bipolar stepper motors. It supports multiple step resolutions from full step to 1/16 step, offering precise motor control. The device operates with a load voltage range of 12V to 40V and a supply voltage of 4.75V to 5.25V, with an output current capability of 1.3A. The parallel interface facilitates straightforward integration into system designs. The E-L6258EP is suitable for general-purpose applications across various industries requiring robust motor control solutions. Its surface mount design and high operating temperature rating of 150°C (TJ) ensure performance in demanding environments. The package configuration includes four half-bridge outputs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-PowerFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.3A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 12V ~ 40V |
| Supplier Device Package | PowerSSO-36 EPD |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
