E-L6258EATR

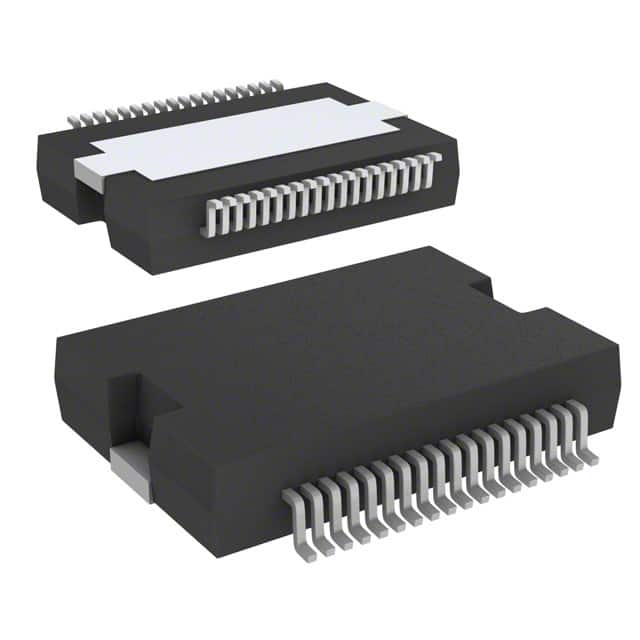

IC MOTOR DRIVER BIPLR 36POWERSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The STMicroelectronics L6258EATR is a fully integrated bipolar stepper motor driver featuring a DMOS power stage. This component is designed for parallel interface control and offers a high level of integration for both control and power circuitry. The device supports multiple step resolutions including 1, 1/2, 1/4, 1/8, and 1/16 steps, enabling precise motor positioning. It provides an output current of 1.5A per phase and operates with a load voltage range of 12V to 40V, while its supply voltage is rated from 4.75V to 5.25V. The L6258EATR is housed in a 36-PowerBSSOP (0.433", 11.00mm Width) package with a bottom pad for enhanced thermal dissipation. Its output configuration includes four half-bridges. Operating at an ambient temperature up to 150°C (TJ), this device is suitable for general-purpose applications in areas such as industrial automation and robotics. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 12V ~ 40V |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
