E-L6258EA
IC MOTOR DRIVER BIPLR 36POWERSOManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More

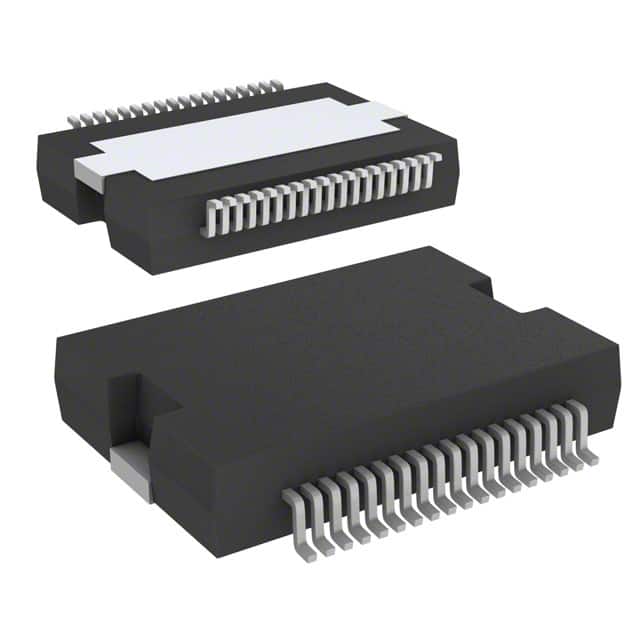

The STMicroelectronics L6258EA is a bipolar stepper motor driver featuring a fully integrated control and power stage. This DMOS technology device operates from a supply voltage range of 4.75V to 5.25V and drives loads from 12V to 40V. It offers a continuous output current of 1.5A and supports step resolutions including 1, 1/2, 1/4, 1/8, and 1/16. The interface is parallel, and the output configuration consists of four half-bridges. The L6258EA is housed in a 36-PowerBSSOP (0.433", 11.00mm Width) package with a bottom pad, designed for surface mounting. Its operating temperature range extends to 150°C (TJ). This component finds application in general-purpose designs across various industries requiring precise motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 12V ~ 40V |
| Supplier Device Package | PowerSO-36, Bottom Pad |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
