E-L6219

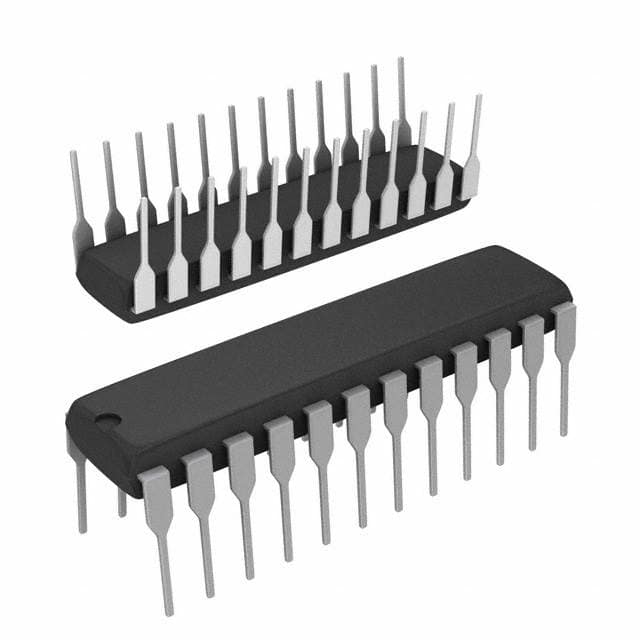

IC MOTOR DRVR BIPOLAR 24POWERDIPManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics E-L6219 is a bipolar stepper motor driver featuring a fully integrated control and power stage. This component is designed for direct parallel interface control of bipolar stepper motors, offering a current output of 750mA per channel. The E-L6219 operates with a load voltage range of 10V to 46V and a supply voltage of 4.75V to 5.25V. Key features include four half-bridge output configurations, enabling precise control over motor windings. It supports step resolutions of full and half steps. The E-L6219 is housed in a 24-PowerDIP package suitable for through-hole mounting and operates across an extended temperature range of -20°C to 150°C. This device finds application in general-purpose motor control within industrial automation and robotics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-PowerDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 750mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | - |
| Voltage - Load | 10V ~ 46V |
| Supplier Device Package | 24-PowerDIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2 |
