E-L293DD013TR
IC MTR DRV BIPOLR 4.5-36V 20SOICManufacturer: STMicroelectronics
Categories: Motor Drivers, Controllers
Quality Control: Learn More
STMicroelectronics E-L293DD013TR is a bipolar motor driver designed for demanding applications. This fully integrated component combines control and power stages, offering four half-bridge outputs. It features a parallel interface and is suitable for driving brushed DC and bipolar stepper motors. The device operates with a load and supply voltage range of 4.5V to 36V, with a continuous output current of 600mA per channel.
Constructed with a 20-SOIC surface-mount package, the E-L293DD013TR is engineered for reliable performance across an operating temperature range of -40°C to 150°C. Commonly utilized in industrial automation, robotics, and consumer electronics, this STMicroelectronics component provides robust motor control capabilities. The E-L293DD013TR is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 600mA |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 36V |
| Applications | General Purpose |
| Technology | - |
| Voltage - Load | 4.5V ~ 36V |
| Supplier Device Package | 20-SO |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
Clients Also Buy
L297D
IC MOTOR DRV BIPOLAR/UNIPLR 20SO

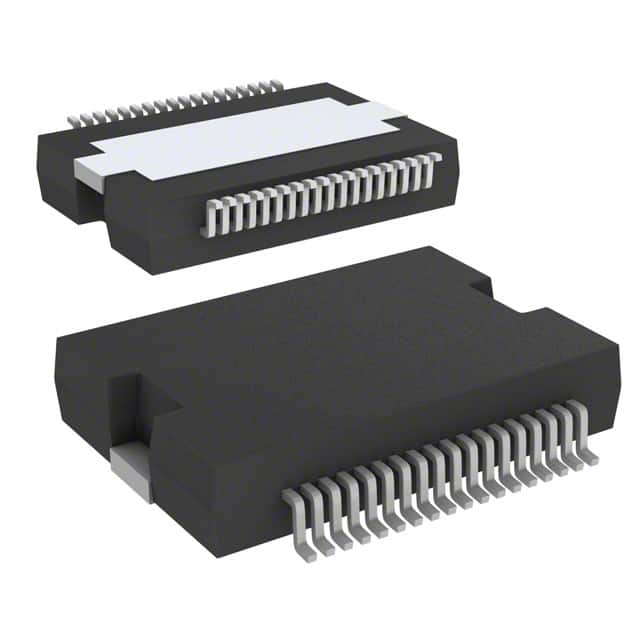

L6258EXTR
