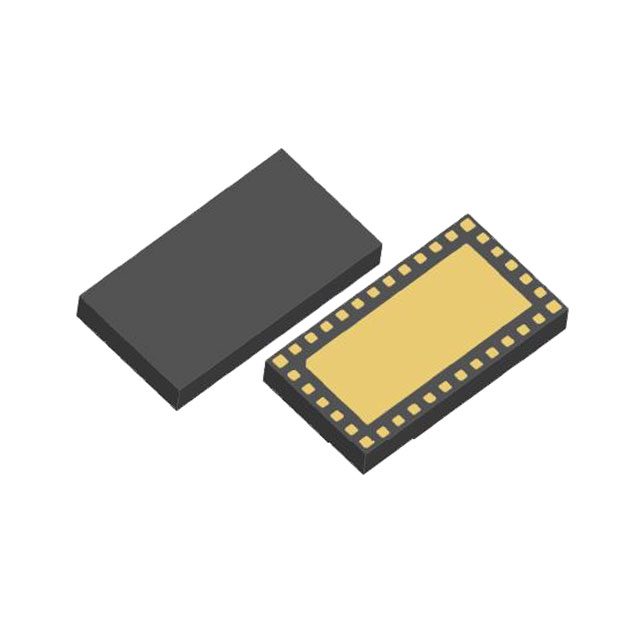

HDMI2C2-14HD
TVS DEVICE MIXED ESD SIGNAL BSTManufacturer: STMicroelectronics
Categories: Mixed Technology
Quality Control: Learn More
STMicroelectronics HDMI2C2-14HD is a high-performance TVS diode designed for mixed-signal ESD protection of HDMI interfaces. This 14-circuit device offers robust protection against electrostatic discharge events, crucial for maintaining signal integrity in demanding applications. Its surface mount configuration, utilizing a 36-VFQFN exposed pad package, facilitates efficient integration into compact PCB designs. The mixed technology employed ensures optimal performance for both signal and power line protection. This component is widely utilized in the consumer electronics industry, including televisions, monitors, and AV receivers, where compliance with stringent ESD standards is paramount. The device is supplied on Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Applications | HDMI |
| Technology | Mixed Technology |
| Voltage - Clamping | - |
| Number of Circuits | 14 |
Request a Quote
