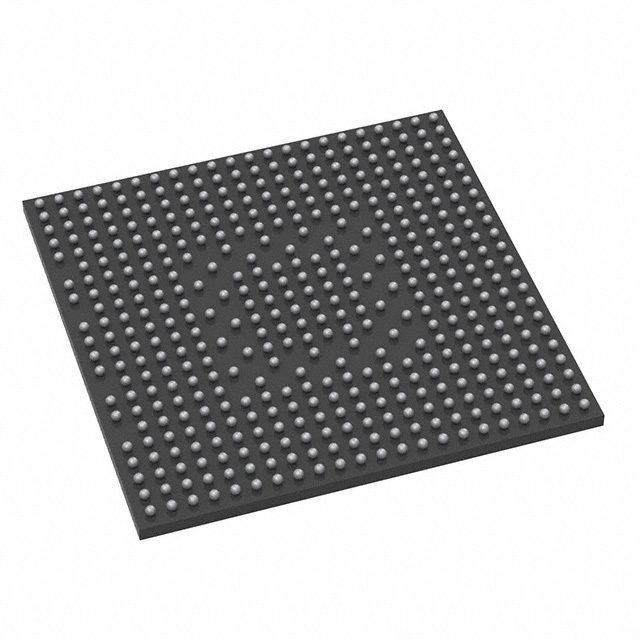

STM32MP151FAA1
IC MPU STM32MP1 800MHZ 448LFBGAManufacturer: STMicroelectronics
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A7 Microprocessor IC STM32MP1 1 Core, 32-Bit 209MHz, 800MHz 448-LFBGA (18x18)
Additional Information
Series: STM32MP1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 448-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 209MHz, 800MHz |
| Operating Temperature | -20°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A7 |
| Voltage - I/O | 2.5V, 3.3V |
| Supplier Device Package | 448-LFBGA (18x18) |
| Ethernet | 10/100Mbps, GbE |
| USB | USB 2.0 (2), USB 2.0 OTG+ PHY (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | ARM® Cortex®-M4 |
| RAM Controllers | DDR3, DDR3L, LPDDR2, LPDDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI-CEC, LCD |
| Security Features | ARM TZ |
| SATA | - |
| Additional Interfaces | CAN, Ethernet, I2C, MMC/SD/SDIO, SPDIF, SPI, UART, USB |
