SPEAR320-2
IC MPU SPEAR 333MHZ 289LFBGAManufacturer: STMicroelectronics
Categories: Microprocessors
Quality Control: Learn More
STMicroelectronics SPEAr® series microprocessor, part number SPEAR320-2, features an ARM926EJ-S core running at 333MHz. This 32-bit, single-core device is housed in a 289-LFBGA package, suitable for surface mount applications. The SPEAR320-2 offers extensive peripheral support including three 10/100Mbps Ethernet ports, three USB 2.0 ports with integrated PHY, and multiple interfaces such as CAN, I2C, IrDA, Microwire, MMC/SDIO, SPI, and UART. It also includes LCD and touchscreen controller capabilities, and is equipped with LPDDR and DDR2 RAM controllers. Security features are enhanced with a C3 co-processor for cryptography. This component is ideal for industrial automation, networking equipment, and embedded systems operating within a temperature range of -40°C to 85°C (TC).
Additional Information
Series: SPEAr®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 289-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 333MHz |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Core Processor | ARM926EJ-S |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 289-LFBGA |
| Ethernet | 10/100Mbps (3) |
| USB | USB 2.0 + PHY (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; C3 |
| RAM Controllers | LPDDR, DDR2 |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen |
| Security Features | Cryptography |
| SATA | - |
| Additional Interfaces | CAN, I2C, IrDA, Microwire, MMC/SDIO, SPI, UART |
Request a Quote
Clients Also Buy
SPEAR310-2
IC MPU SPEAR 333MHZ 289LFBGA

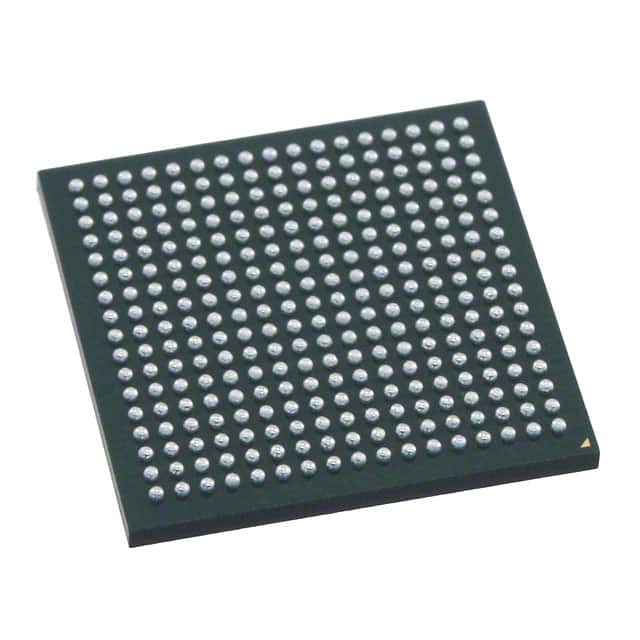

SPEAR300-2
IC MPU SPEAR 333MHZ 289LFBGA

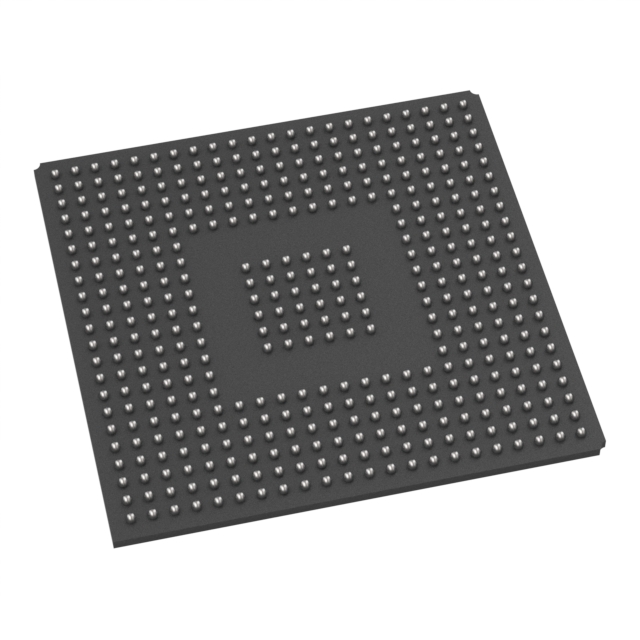

SPEAR600-2
