MP34DT01TR-M
MIC MEMS DIGITAL PDM OMNI -26DBManufacturer: STMicroelectronics
Categories: Microphones
Quality Control: Learn More
STMicroelectronics MP34DT01TR-M is a digital MEMS microphone featuring Pulse Density Modulation (PDM) output. This omnidirectional component offers a sensitivity of -26dB ±3dB at 94dB SPL, with a frequency response spanning 20 Hz to 10 kHz. Operating within a voltage range of 1.64 V to 3.6 V, it typically draws 600 µA of supply current. The S/N ratio is rated at 61dB. Measuring 4.00mm x 3.00mm x 1.16mm, this rectangular microphone utilizes solder pad termination and is supplied in tape and reel packaging. Applications for this component include consumer electronics and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Output Type | Digital, PDM |
| Size / Dimension | 0.157"" L x 0.118"" W (4.00mm x 3.00mm) |
| Sensitivity | -26dB ±3dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 61dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.046"" (1.16mm) |
| Voltage - Rated | 1.8 V |
| Current - Supply | 600 µA |
| Voltage Range | 1.64 V ~ 3.6 V |
| Frequency Range | 20 Hz ~ 10 kHz |
Request a Quote
Clients Also Buy

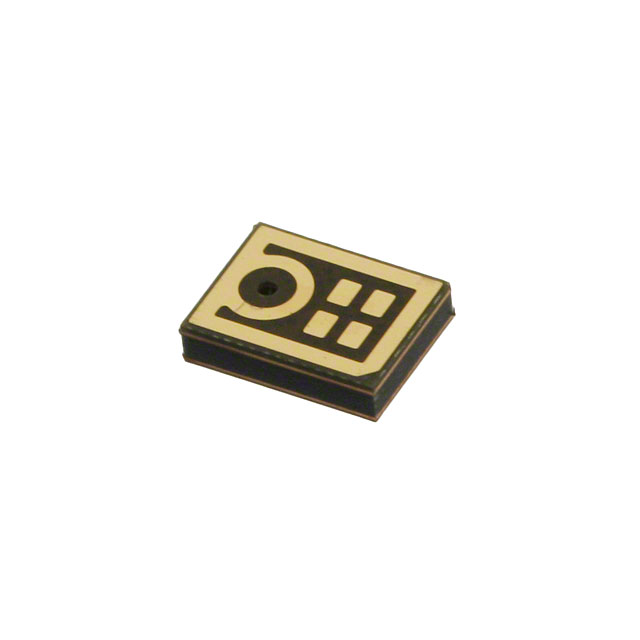

MP34DB01TR
MIC MEMS DIGITAL PDM OMNI -26DB

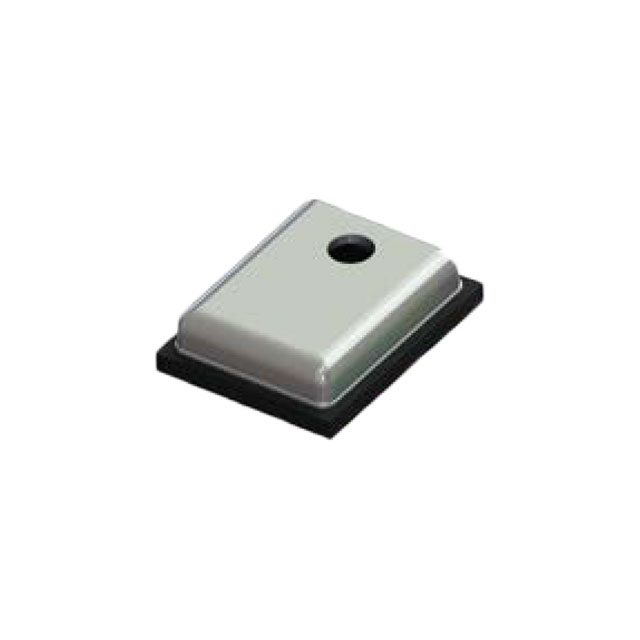

MP45DT02TR-M
MIC MEMS DIGITAL PDM OMNI -26DB

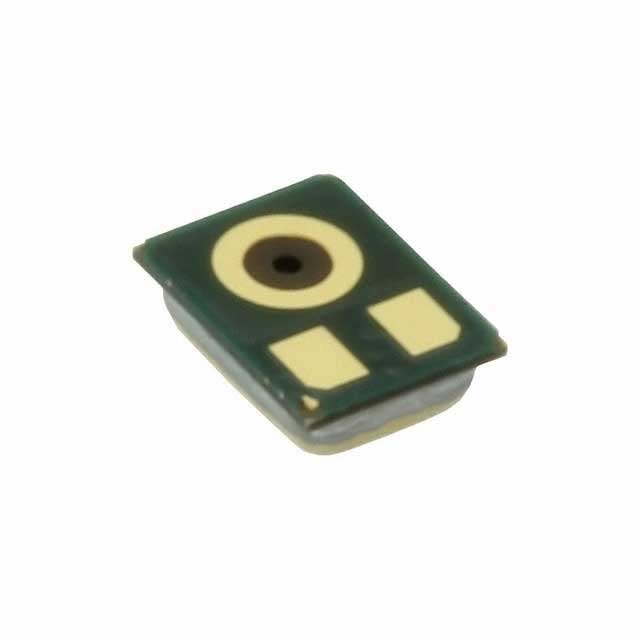

MP23AB02BTR
