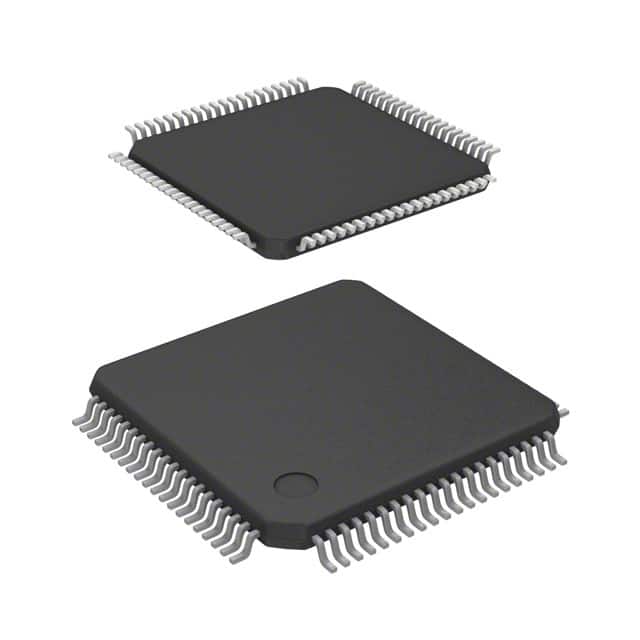

UPSD3422E-40U6
IC MCU 8BIT 80KB FLASH 80LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics µPSD series 8032 microcontroller, part number UPSD3422E-40U6. This 8-bit MCU features a 40MHz core, 80KB of FLASH program memory, and 4K x 8 RAM. Connectivity options include I2C, IrDA, SPI, UART/USART, and USB. On-chip peripherals include LVD, POR, PWM, and WDT. It also integrates 8x10b A/D converters. The device operates from a 3V to 5.5V supply and is housed in an 80-LQFP package suitable for surface mounting. This component is utilized in various industrial applications.
Additional Information
Series: µPSDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 80KB (80K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8032 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 46 |
| Programmable | Not Verified |
