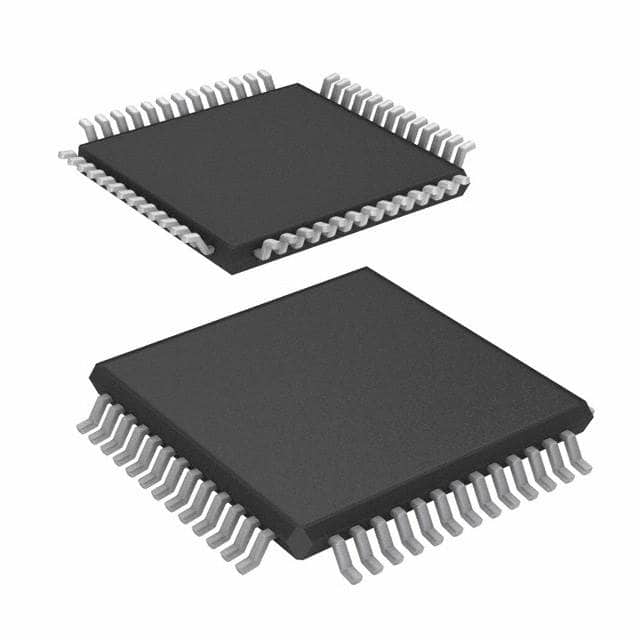

UPSD3312DV-40T6
IC MCU 8BIT 80KB FLASH 52TQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics µPSD series microcontroller, part number UPSD3312DV-40T6. This 8-bit microcontroller features an 8032 core operating at 40MHz, with 80KB of FLASH program memory and 2KB of RAM. It offers a comprehensive set of peripherals including LVD, POR, PWM, and WDT. Connectivity options include I2C, IrDA, SPI, and UART/USART. The device incorporates 8x10-bit A/D converters. Designed for surface mounting, it is available in a 52-TQFP package. This component is suitable for applications in industrial automation, consumer electronics, and automotive systems. Operating temperature range is -40°C to 85°C.
Additional Information
Series: µPSDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-TQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 80KB (80K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8032 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 36 |
| Programmable | Not Verified |
