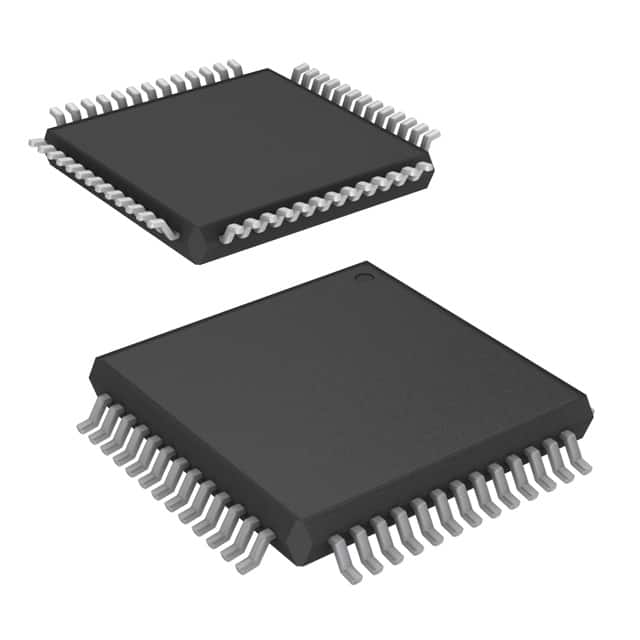

UPSD3212C-40T6
IC MCU 8BIT 80KB FLASH 52LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics µPSD series 8-bit microcontroller, part number UPSD3212C-40T6, features an 8032 core operating at 40MHz. This device offers 80KB of FLASH program memory and 2KB of RAM, with a program memory organization of 80K x 8 bits. Integrated peripherals include LVD, POR, PWM, and WDT. Connectivity options are provided via I2C and UART/USART interfaces. The UPSD3212C-40T6 includes 4x8-bit Analog-to-Digital converters and 46 general-purpose I/O pins. It is designed for surface mounting within a 52-LQFP package and operates across a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics. The device operates from a 4.5V to 5.5V supply.
Additional Information
Series: µPSDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 80KB (80K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8032 |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | I2C, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 46 |
| Programmable | Not Verified |
