STR912FAZ46H6
IC MCU 32BIT 1MB FLASH 144BGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

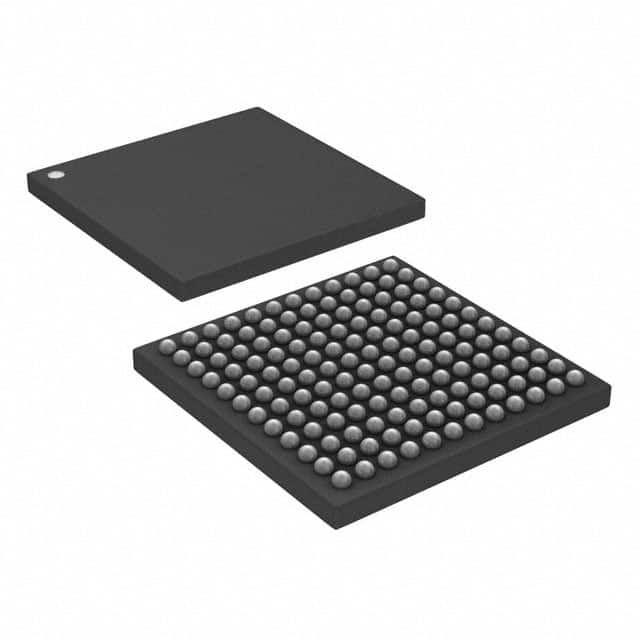

The STMicroelectronics STR9 Series microcontroller, part number STR912FAZ46H6, features an ARM9® core operating at 96MHz. This 16/32-bit MCU offers 1MB of FLASH program memory and 96KB of RAM. Integrated peripherals include CANbus, Ethernet, I2C, SPI, UART/USART, and USB connectivity, along with an 8x10b A/D converter and DMA controller. Additional features comprise Brown-out Detect/Reset, Motor Control PWM, POR, PWM, and WDT. The device is available in a 144-LFBGA package suitable for surface mounting, with 80 I/O pins. It operates across a temperature range of -40°C to 85°C and requires a supply voltage between 1.65V and 2V. This component is commonly utilized in industrial automation and embedded control applications.
Additional Information
Series: STR9RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 96MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM9® |
| Data Converters | A/D 8x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 2V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 80 |
| Programmable | Not Verified |
