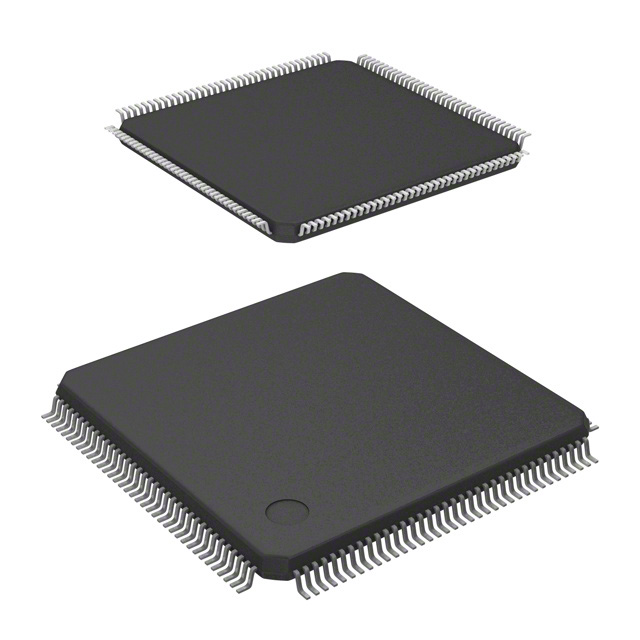

STR710FZ2T6
IC MCU 32BIT 256KB FLASH 144LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics STR7 series microcontroller, part number STR710FZ2T6, is a 32-bit ARM7® core-based device operating at 66MHz. This unit features 256KB of FLASH program memory and 64KB of RAM. Connectivity options include CANbus, EBI/EMI, HDLC, I2C, SmartCard, SPI, UART/USART, and USB interfaces. For analog interfacing, it offers four 12-bit Analog-to-Digital converters. Integrated peripherals include Pulse Width Modulation (PWM) and Watchdog Timers (WDT). The STR710FZ2T6 is provided in a 144-LQFP package suitable for surface mounting and operates within a temperature range of -40°C to 85°C. This component finds application in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: STR7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 256KB (256K x 8 + 16K) |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 4x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, HDLC, I2C, SmartCard, SPI, UART/USART, USB |
| Peripherals | PWM, WDT |
| Number of I/O | 48 |
| Programmable | Not Verified |
