STR710FZ1T6
IC MCU 32BIT 128KB FLASH 144LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

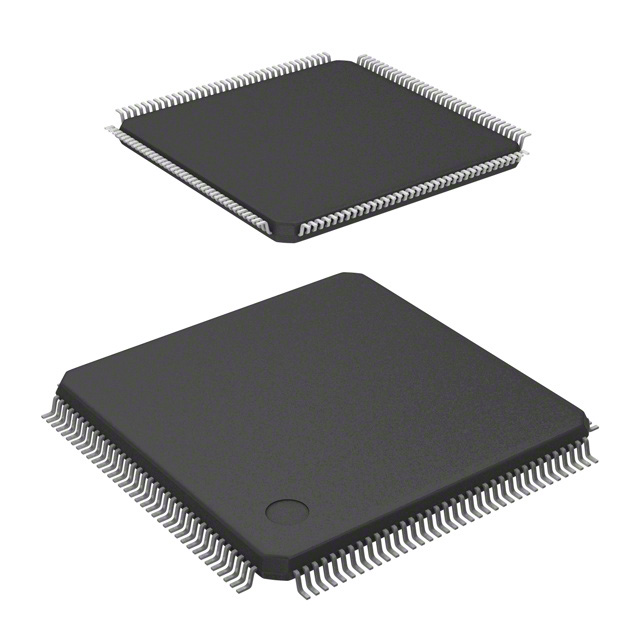

STMicroelectronics STR7 Series microcontroller, part number STR710FZ1T6. This 32-bit ARM7® core microcontroller operates at 66MHz and features 128KB of FLASH program memory (128K x 8 + 16K) and 32KB of SRAM. The device supports a wide range of connectivity options including CANbus, EBI/EMI, HDLC, I2C, SmartCard, SPI, UART/USART, and USB interfaces. Peripherals include PWM and WDT. It offers 48 I/O pins and a 4x12-bit Analog-to-Digital converter. The STR710FZ1T6 is housed in a 144-LQFP package for surface mounting and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: STR7RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Program Memory Size | 128KB (128K x 8 + 16K) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 4x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, HDLC, I2C, SmartCard, SPI, UART/USART, USB |
| Peripherals | PWM, WDT |
| Number of I/O | 48 |
| Programmable | Not Verified |
