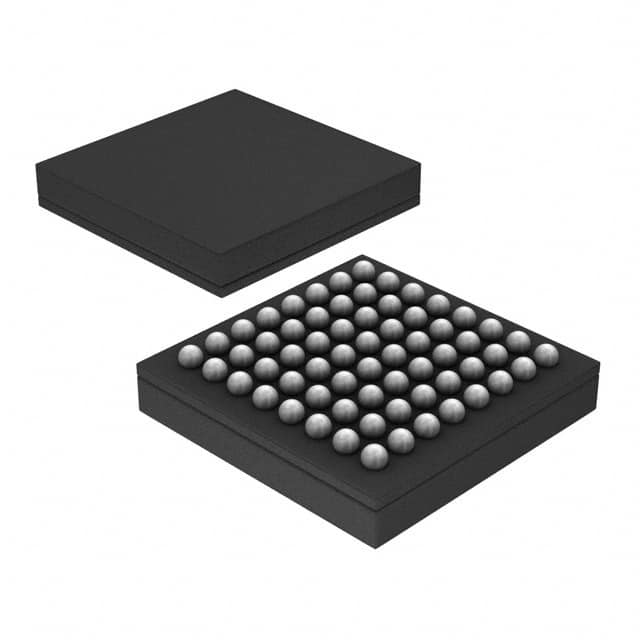

STM32L152RBH6
IC MCU 32BIT 128KB FLASH 64TFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32L1 Series microcontroller, part number STM32L152RBH6, features an ARM Cortex-M3 32-bit core operating at 32MHz. This device offers 128KB of FLASH program memory and 16KB of RAM, complemented by 4KB of EEPROM. Connectivity options include I2C, IrDA, LINbus, SPI, UART/USART, and USB. The STM32L152RBH6 includes integrated peripherals such as DMA, I2S, LCD, PWM, WDT, and Cap Sense, along with Brown-out Detect/Reset and POR functionalities. It also incorporates 20x12-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. This surface-mount component is housed in a 64-TFBGA (5x5) package and operates within a temperature range of -40°C to 85°C. Its design is suitable for applications in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: STM32L1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 20x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 64-TFBGA (5x5) |
| Number of I/O | 51 |
| Programmable | Not Verified |
