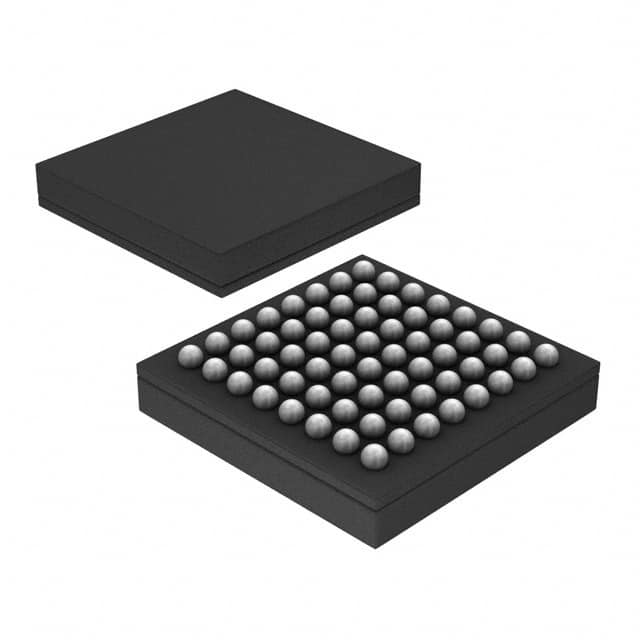

STM32L152R8H6
IC MCU 32BIT 64KB FLASH 64TFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics STM32L152R8H6 is a 32-bit ARM Cortex-M3 microcontroller featuring a 32MHz core speed. This device offers 64KB of FLASH program memory and 10KB of RAM, along with 4KB of EEPROM. Connectivity options include I2C, IrDA, LINbus, SPI, UART/USART, and USB. It incorporates a 20-channel 12-bit Analog-to-Digital converter and a 2-channel 12-bit Digital-to-Analog converter. Peripherals include Brown-out Detect/Reset, Capacitive Sensing, DMA, I2S, LCD control, Power-On Reset, PWM generation, and a Watchdog Timer. The microcontroller operates from 1.8V to 3.6V and is housed in a 64-TFBGA (5x5) surface-mount package. This component is suitable for applications in consumer electronics, industrial automation, and medical devices. The STM32L152R8H6 is supplied in Tray packaging.
Additional Information
Series: STM32L1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 10K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 20x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 64-TFBGA (5x5) |
| Number of I/O | 51 |
| Programmable | Not Verified |
