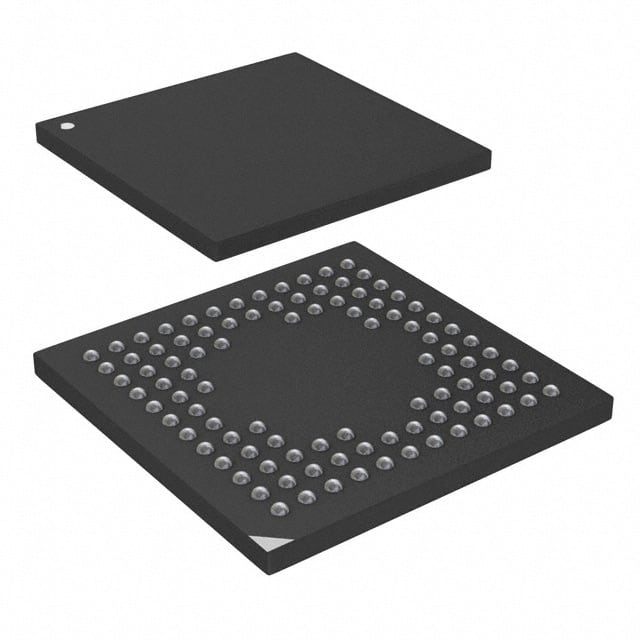

STM32L151VBH6
IC MCU 32BIT 128KB FLSH 100UFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32L1 series microcontroller featuring an ARM® Cortex®-M3 core. This 32-bit, single-core device operates at 32MHz and offers 128KB of FLASH program memory along with 16KB of RAM. The STM32L151VBH6 includes 4KB of EEPROM and supports 24 channels of 12-bit Analog-to-Digital conversion and 2 channels of 12-bit Digital-to-Analog conversion. It provides 83 general-purpose I/O pins and integrates peripherals such as I2C, SPI, UART/USART, USB, LINbus, IrDA, I2S, DMA, WDT, POR, Brown-out Detect/Reset, and Cap Sense. The device operates from a 1.8V to 3.6V supply and is housed in a 100-UFBGA (7x7) package suitable for surface mounting. Its low-power features and extensive peripheral set make it suitable for applications in consumer electronics, industrial automation, and medical devices.
Additional Information
Series: STM32L1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-UFBGA |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 16K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 100-UFBGA (7x7) |
| Number of I/O | 83 |
| Programmable | Not Verified |
