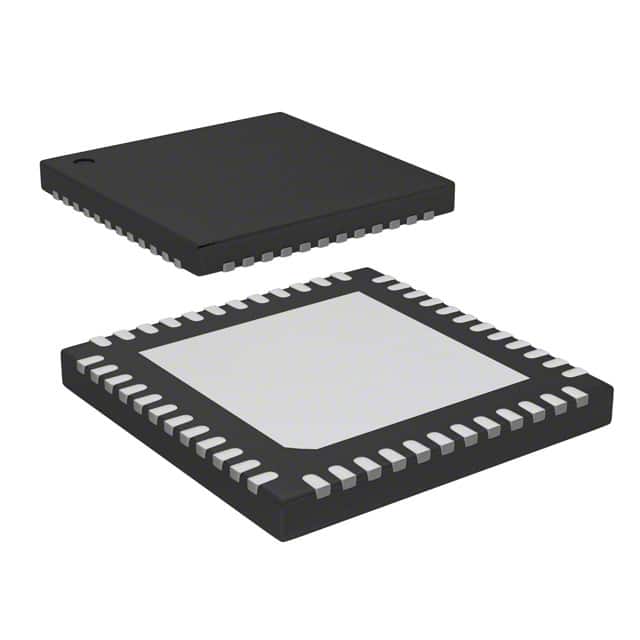

STM32L100C6U6
IC MCU 32BIT 32KB FLASH 48UFQFPNManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32L1 series microcontroller, part number STM32L100C6U6. This 32-bit ARM Cortex-M3 core microcontroller operates at 32MHz and features 32KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, SPI, UART/USART, and USB interfaces. The device integrates a 16-channel 12-bit Analog-to-Digital converter and dual 12-bit Digital-to-Analog converters. Peripherals include Brown-out Detect/Reset, DMA, LCD controller support, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). It offers 37 General Purpose Input/Output (GPIO) pins and operates within a voltage range of 1.8V to 3.6V. The STM32L100C6U6 is suitable for various industrial applications, including consumer electronics and industrial automation. It is supplied in a 48-UFQFN Exposed Pad package and is rated for an operating temperature of -40°C to 85°C.
Additional Information
Series: STM32L1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-UFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | ARM® Cortex®-M3 |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 37 |
| Programmable | Not Verified |
