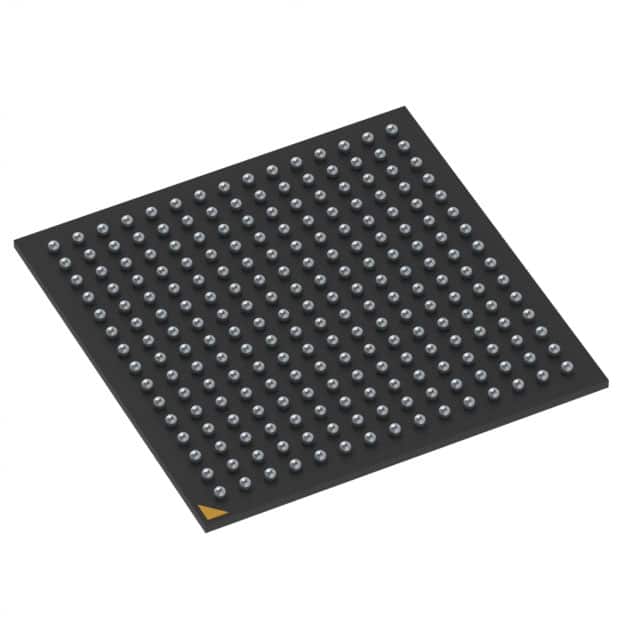

STM32H7A3LIH6Q
IC MCU 32BIT 2MB FLASH 225TFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M7 STM32H7 Microcontroller IC 32-Bit Single-Core 280MHz 2MB (2M x 8) FLASH 225-TFBGA (13x13)
Additional Information
Series: STM32H7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 225-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 280MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 1.4M x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 24x16b; D/A 3x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, HDMI-CEC, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, SAI, SPDIF, SPI, SWPMI, UART/USART, |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 225-TFBGA (13x13) |
| Number of I/O | 168 |
| Programmable | Not Verified |
