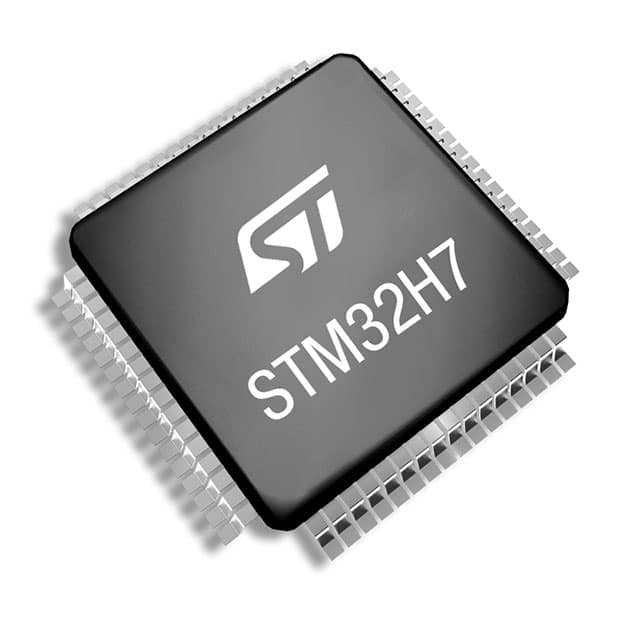

STM32H735ZGT6
IC MCU 32BIT 1MB FLASH 144LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
The STMicroelectronics STM32H7 series microcontroller, part number STM32H735ZGT6, features an ARM Cortex-M7 32-bit single-core processor operating at 550MHz. This device offers 1MB of FLASH program memory and 564KB of RAM. It is housed in a 144-LQFP (20x20) surface mount package. Integrated peripherals include extensive analog capabilities with 12x12-bit and 22x16-bit ADCs and 2x12-bit DACs, alongside digital interfaces such as CANbus, Ethernet, I2C, SPI, and UART. Additional peripherals include DMA, I2S, LCD, POR, PWM, and WDT. This component is suitable for demanding applications in industrial automation, motor control, and advanced consumer electronics. It operates within a voltage range of 1.62V to 3.6V and an ambient temperature range of -40°C to 85°C.
Additional Information
Series: STM32H7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 550MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 564K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M7 |
| Data Converters | A/D 12x12/b, 22x16b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/ |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 97 |
| Programmable | Not Verified |
