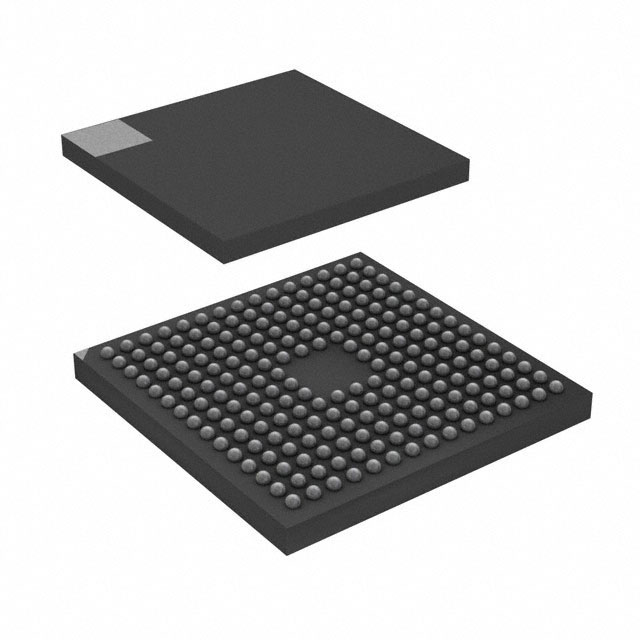

STM32F429NIH6J
IC MCU 32BIT 2MB FLASH 216TFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
STMicroelectronics STM32F4 Series microcontroller, part number STM32F429NIH6J. This 32-bit ARM Cortex-M4 core processor operates at 180MHz, featuring 2MB of FLASH program memory and 256KB of RAM. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, and USB OTG. The device incorporates 24x 12-bit Analog-to-Digital converters and 2x 12-bit Digital-to-Analog converters. Peripherals include Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, and WDT. This surface mount component is housed in a 216-TFBGA (13x13) package. The operating temperature range is -40°C to 85°C. This component is commonly found in industrial automation, medical devices, and automotive applications.
Additional Information
Series: STM32F4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 216-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 2MB (2M x 8) |
| RAM Size | 256K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 216-TFBGA (13x13) |
| Number of I/O | 168 |
| Programmable | Not Verified |
