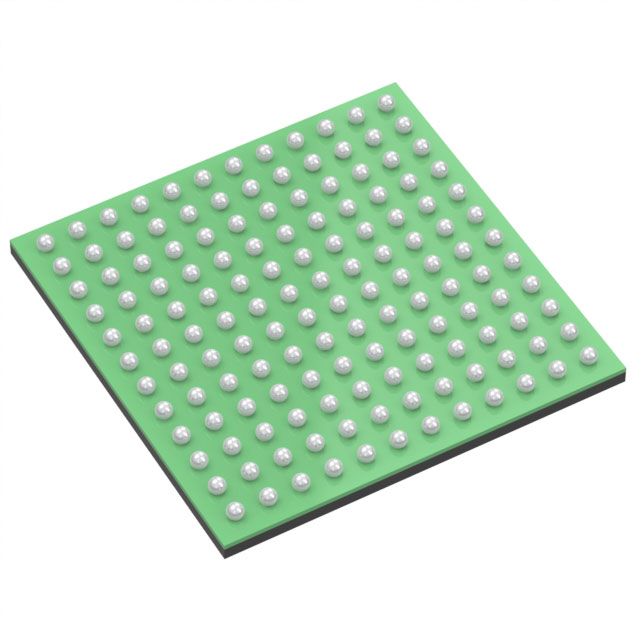

STM32F423ZHJ6I
IC MCU 32BIT 1.5MB FLSH 144UFBGAManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4F STM32F4 Microcontroller IC 32-Bit 100MHz 1.5MB (1.5M x 8) FLASH 144-UFBGA (10x10)
Additional Information
Series: STM32F4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 144-UFBGA |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 1.5MB (1.5M x 8) |
| RAM Size | 320K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Core Size | 32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SMBus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, Temp Sensor, Voltage Detect, WDT |
| Supplier Device Package | 144-UFBGA (10x10) |
| Number of I/O | 114 |
