STM32F407ZGT6J
IC MCU 32BIT 1MB FLASH 144LQFPManufacturer: STMicroelectronics
Categories: Microcontrollers
Quality Control: Learn More

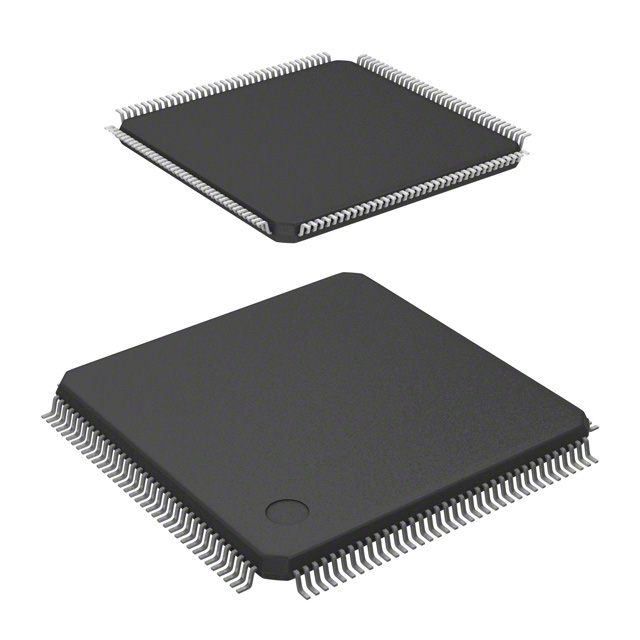

STMicroelectronics STM32F407ZGT6J is an ARM Cortex-M4 32-bit microcontroller featuring a single-core architecture operating at 168MHz. This device offers 1MB of FLASH program memory and 192KB of RAM. It is equipped with a comprehensive set of peripherals including CANbus, DCMI, Ethernet, I2C, SPI, UART/USART, and USB OTG connectivity. Data conversion capabilities are provided by 24x12-bit ADCs and 2x12-bit DACs. The microcontroller includes standard peripherals such as Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, and WDT. Supplied in a 144-LQFP (20x20) package for surface mounting, the STM32F407ZGT6J operates within a voltage range of 1.8V to 3.6V and is rated for an operating temperature of -40°C to 85°C. This component is commonly utilized in industrial automation, automotive, and consumer electronics applications.
Additional Information
Series: STM32F4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 168MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 192K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | CANbus, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 114 |
| Programmable | Not Verified |
